LTZ-388HBackhoe Loaders
LTZ-388HBackhoe Loaders
GOOD MANEUVERABILITY
STRONG APPLICABILITY
They are mainly used in civil engineering, mining, agriculture, ports and docks, and are widely used in various transportation, cargo loading and unloading operations. They have good mobility, will not damage the road surface, and are easy to operate, meeting the needs of multi-tasking in heavy construction sites.
Get a quote
View Video

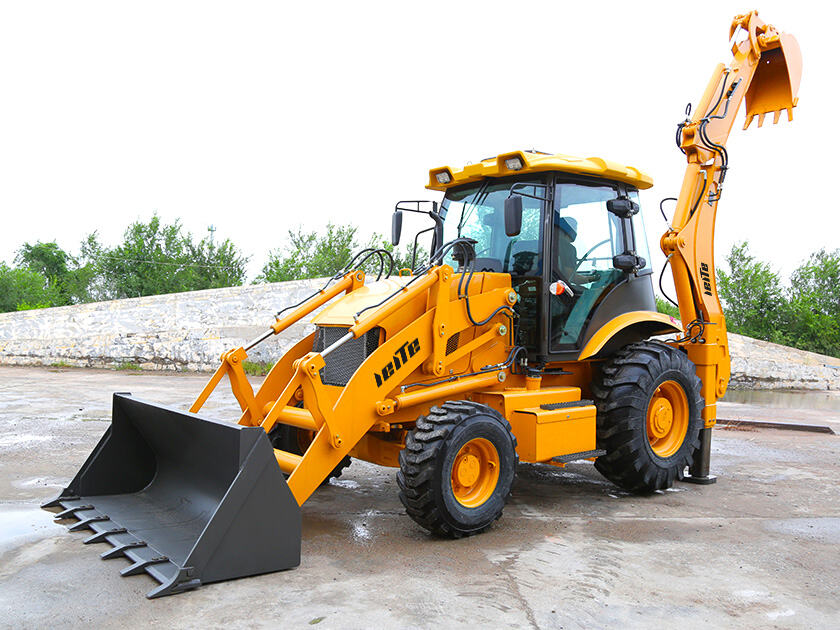

1.LTZ388H-Backhoe-Loader

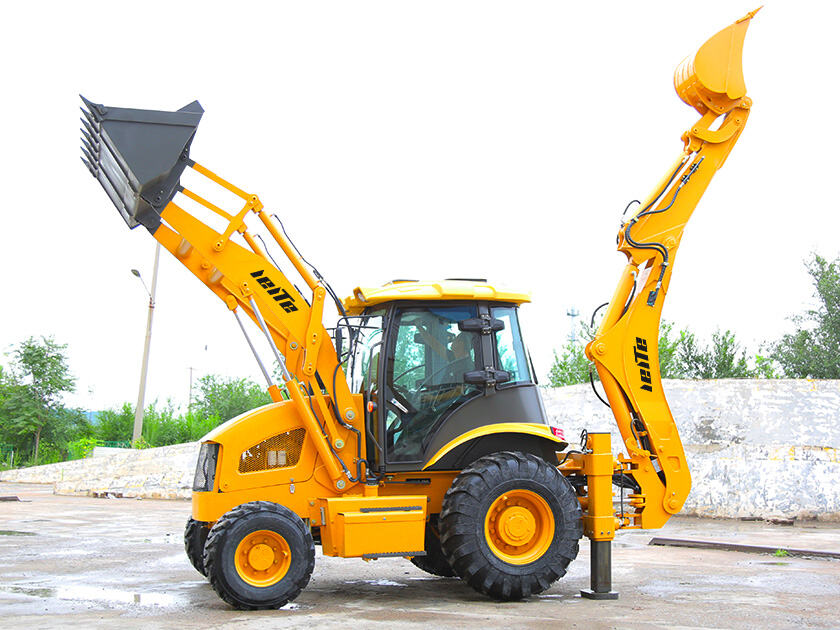

2.LTZ388H-Backhoe-Loader

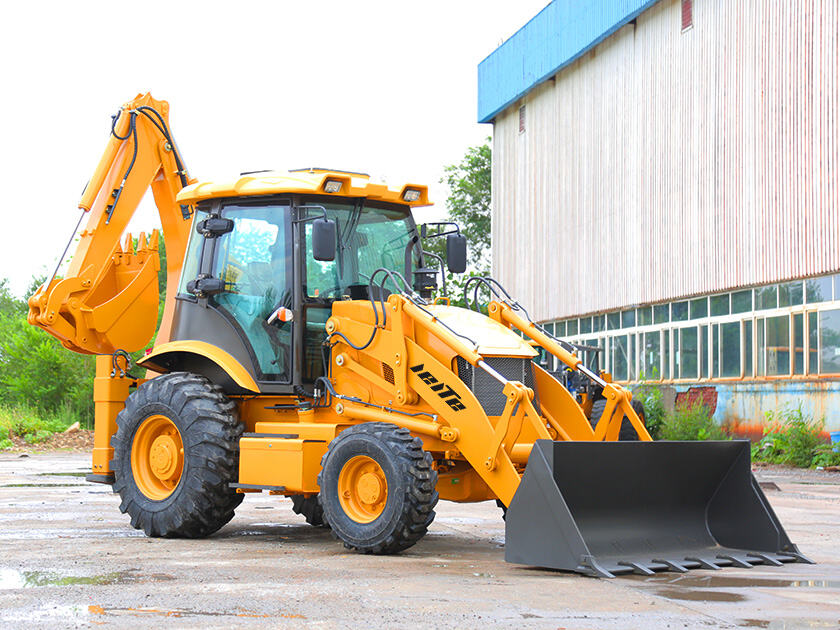

3.LTZ388H-Backhoe-Loader

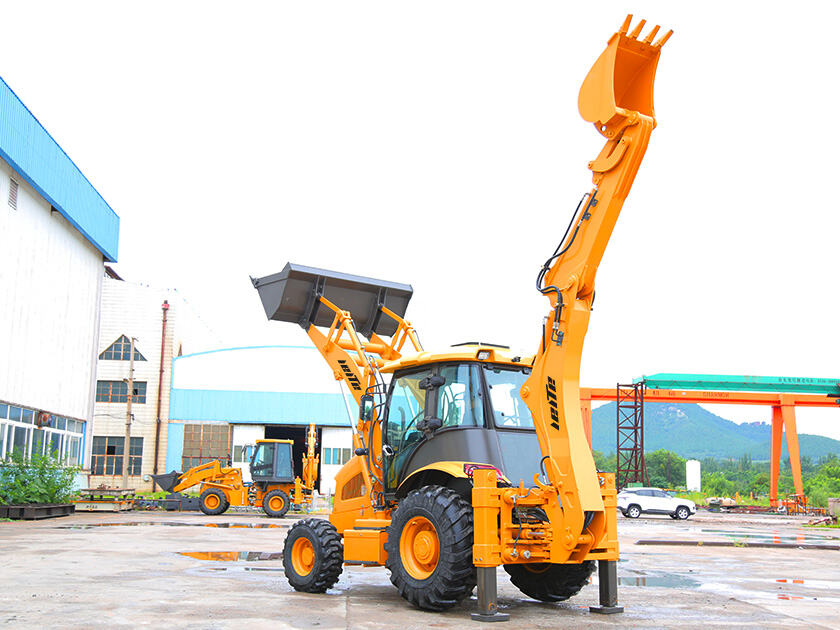

4.LTZ388H-Backhoe-Loader
5.LTZ388H-Backhoe-Loader
  • Bucket capacity1.2m³
  • Power75kW
  • Weight10500kg
  • Dimension6450*2530*3120mm
Overview LTZ-388H Backhoe Loaders

Benefits

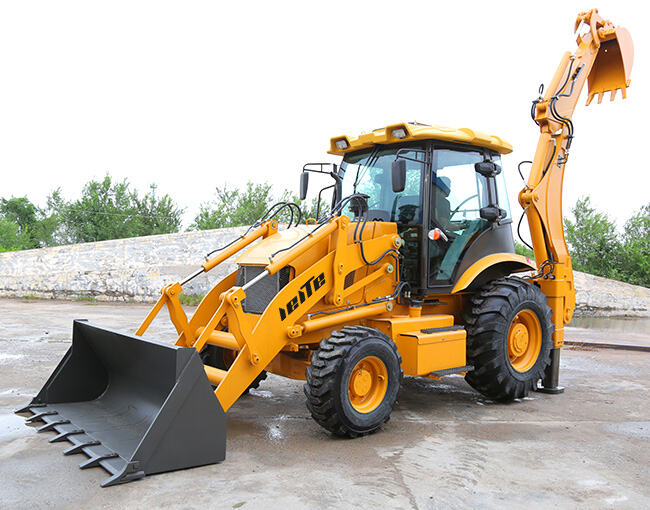

  • Dual-end operation function
  • Dual-end operation function

    The two-end loader is equipped with working devices at both ends, which can load and unload at both ends at the same time, reducing the number of round trips and greatly improving work efficiency. For example, at the construction site, it can load materials while unloading them to the designated location, saving a lot of time.

    Special offers
Specifications
Overall dimensions 6450*2530*3120mm
Wheelbase 2335mm
Track width 2050mm
Minimum turning radius 6950mm
System pressure 14MPa
Machine weight 10500kg
Maximum speed 36km/h
Engine model YC4A105Z-T20
Rated power 75kW
Rated speed 2200r/min
Maximum excavation depth 3820/4770mm
Bucket capacity 1.2m³
Breakout force 47KN
Loading lifting capacity 2500kg
Bucket dumping height 3050mm
Bucket dumping distance 870mm
Backhoe capacity 0.3m³
Max.digging force 50KN
Fuel tank 130L
Hydraulic oil tank 130L
