- Rated Lifting Load7000kg
- Lifting Height3-7m/customized
- EngineYuchai4108
- Net Power110kW

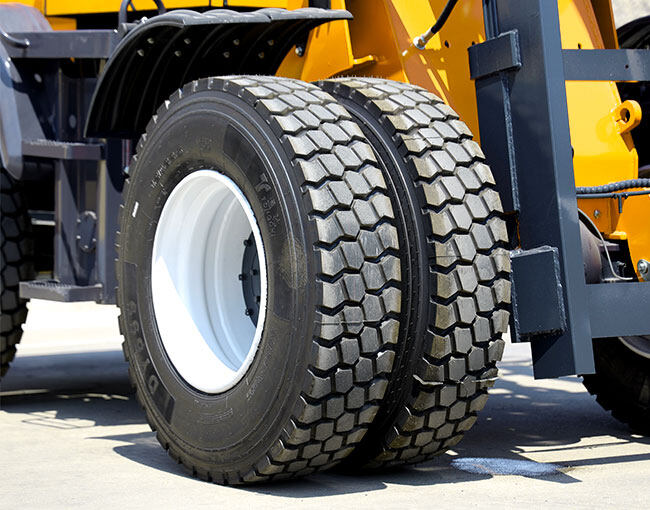

The large-diameter wide-base off-road tires have a large ground clearance to ensure good passability on various complex terrains. The all-wheel drive design, four-wheel drive, low-pressure wide-base off-road engineering vehicle special herringbone tires provide strong traction and off-road performance, and are suitable for various harsh environments.
| Rated Lifting Weight | 7000kg |
| Rated Lifting Height | 4000-7000mm |
| Min.Turning Radius | 4500mm |
| Max.Climbing Angle | ≤38° |
| Min.Ground Clearance | 350mm |
| Fastest Running Speed | 40 km/h |
| Engine Model | Yuchai4108 (110kW) |
| Drive Mode | Four-Wheel Drive |
| Gearbox Model | 280 High and low speed torque converter |
| Axles | GS3000 Heavy-duty cast steel axle |
| Tire Model | 12R22.5 Vacuum steel wire reinforced type (4/2) |
| Wheelbase | 2450mm |
| Frame (Hinged Thickness) | 45mm |
| Width of Mast Steel | 220mm(Aggravated) |
| Fork Length | 1520mm(Optional) |
| Machine Weight | 7500kg |
| Machine Size | 4800*2200*2900mm |
