- Rated Lifting Load3000kg
- Lifting Height3-7m/customized
- EngineYunnei
- Net Power42kW

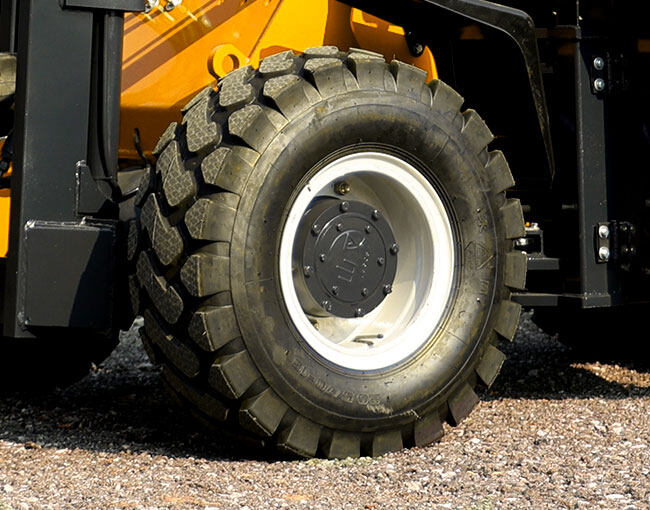

The large-diameter wide-base off-road tires have a large ground clearance to ensure good passability on various complex terrains. The all-wheel drive design, four-wheel drive, low-pressure wide-base off-road engineering vehicle special herringbone tires provide strong traction and off-road performance, and are suitable for various harsh environments.
| Rated Lifting Weight | 3000kg |
| Rated Lifting Height | 3000-7000mm |
| Platform Ground Clearance | 300mm |
| Min.Turning Radius | 3500mm |
| Max.Climbing Angle | ≤38° |
| Front Ground Clearance | 250-350mm |
| Gantry Width | 160mm |
| Engine Model | Yunnei (42kW) |
| Drive Mode | Four-Wheel Drive |
| Gearbox Model | 265 High and Low Speed Large Pump Torque Converter |
| Axles | Small Wheel Side Weight Cast Steel Bridge |
| Tire Model | 20.5/70-16 |
| Frame | Hinged Thick 2.5mm |
| Fork Length | 1220mm(Optional) |
| Machine Weight | 4000kg |
| Machine Size | 4200*1800*2700mm |
