Products / rough terrain forklift / LTY35

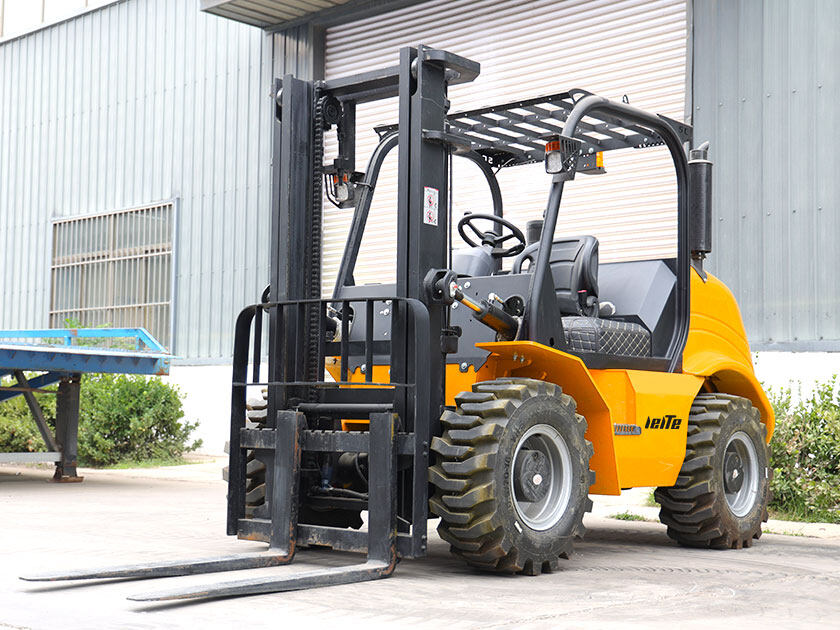

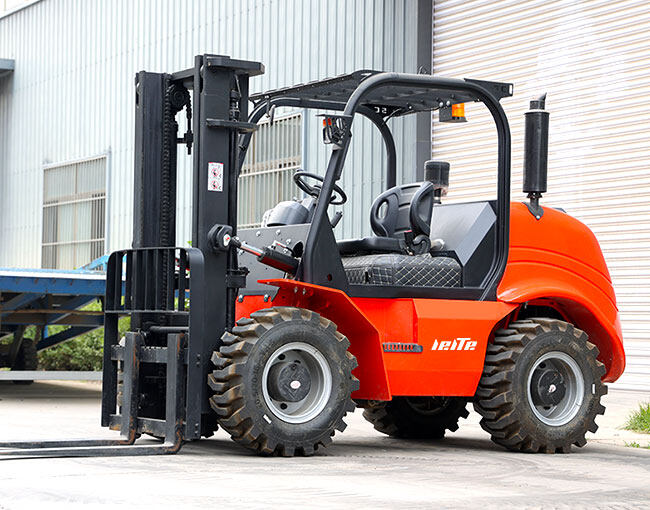

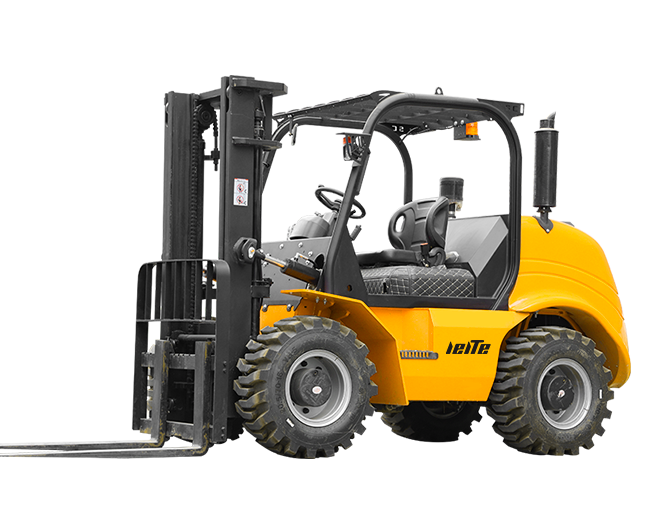

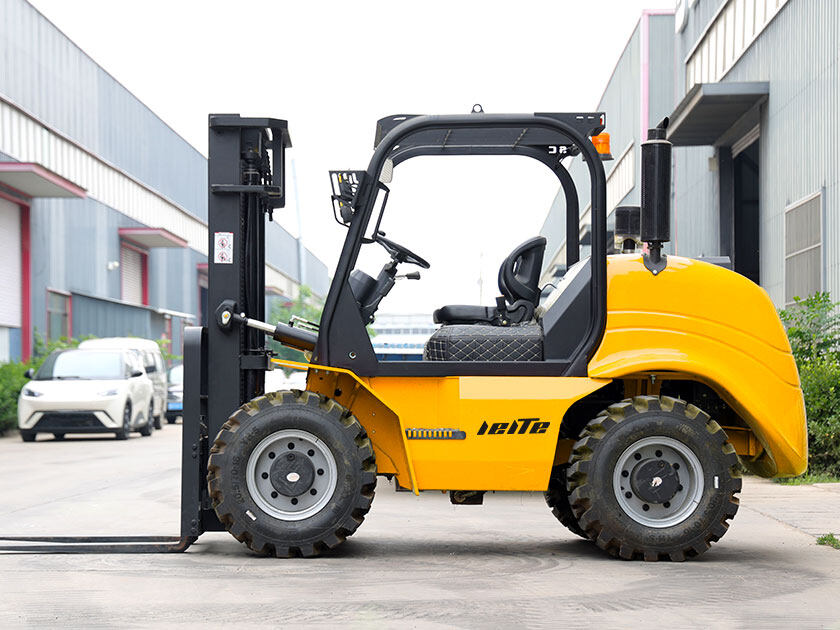

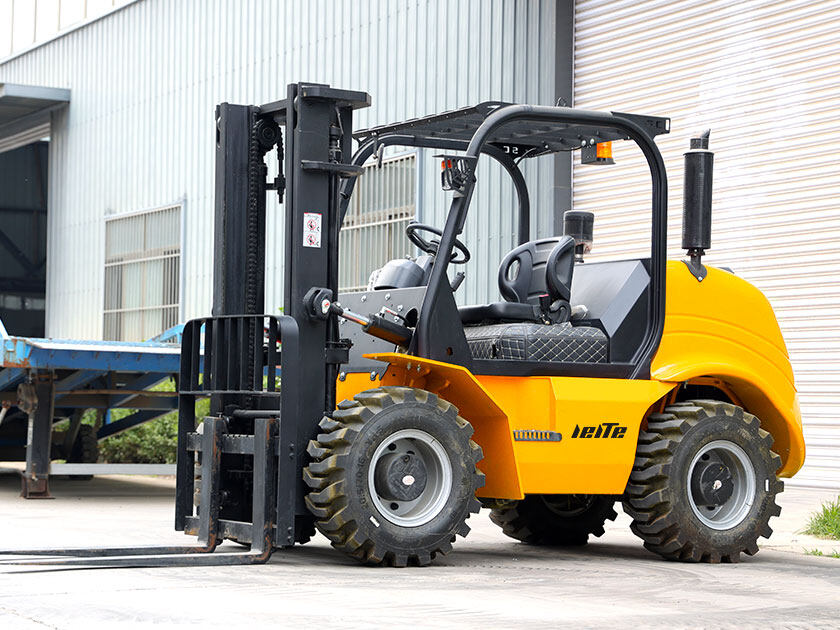

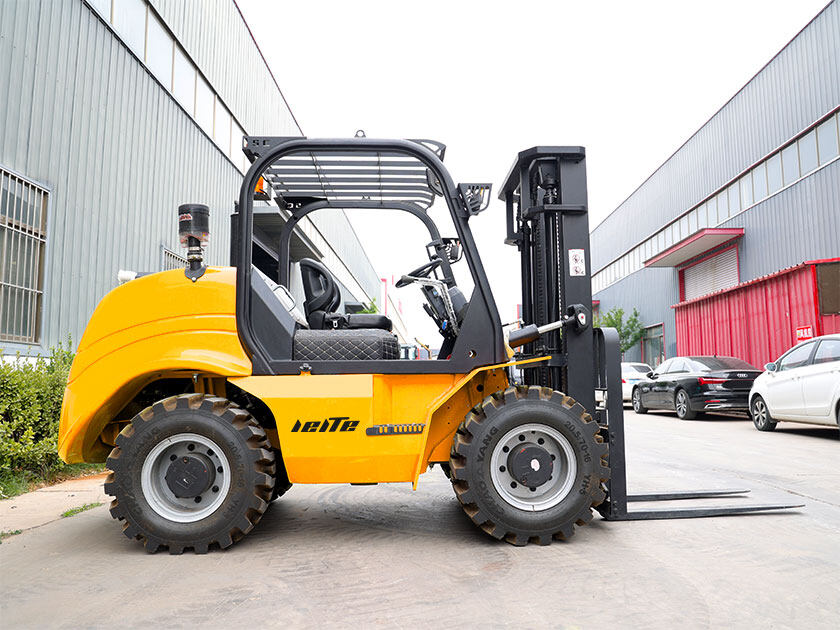

LTY35rough terrain forklift
LTY35rough terrain forklift
EXCELLENT OFF-ROAD PERFORMANCE
The large-diameter wide-base off-road tires provide strong traction and off-road performance, adapting to various harsh environments. The thickened articulated frame and solid structure ensure the stability of the vehicle in various environments. It has strong power, high reliability, and few failures, providing stable and reliable power output.
Get a quote
View Video
1.LTY35-Rough-Terrain-Forklift
2.LTY35-Rough-Terrain-Forklift
3.LTY35-Rough-Terrain-Forklift
4.LTY35-Rough-Terrain-Forklift
5.LTY35-Rough-Terrain-Forklift
  • Rated Lifting Load3500kg
  • Lifting Height3-7m/customized
  • EngineQuanchai495/Yunnei
  • Net Power36.8kW/55kW
Overview LTY35 rough terrain forklift

Benefits
  • Excellent off-road performance
  • Excellent off-road performance

    The large-diameter wide-base off-road tires have a large ground clearance to ensure good passability on various complex terrains. The all-wheel drive design, four-wheel drive, low-pressure wide-base off-road engineering vehicle special herringbone tires provide strong traction and off-road performance, and are suitable for various harsh environments.

    Special offers
Specifications
Rated Lifting Weight 3500kg
Rated Lifting Height 3000-7000mm
Load Center Distance 600mm
Min.Turning Radius 2500mm
Max.Climbing Angle ≤38°
Min.Ground Clearance 320mm
Mast Forward/Backward Tilt Angle 10°/20°
Fastest Running Speed 35 km/h
Max.Hook Pulling Force 30.0KN
Engine Model Quanchai495 (36.8kW)
Drive Mode Four-Wheel Drive
Gearbox Model 280 high and low speed torque converter
Axles Brand wheel side cast steel steering axle (rear axle steering)

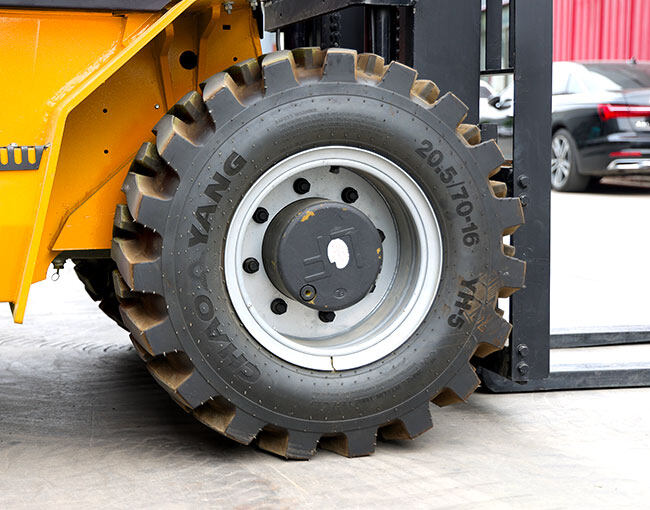

Tire Model Chaoyang 20.5/70-16 semi-solid tire
Wheelbase 1697mm
Width of Mast Steel 160mm(Aggravated)
Fork Length 1220mm(Optional)
Machine Weight 5600-5900kg
Machine Size 2980*1550*2250mm
