- Operating weight3500kg
- Maximum dig depth2600mm
- Net power26.1kW
- Bucket capacity0.06m³

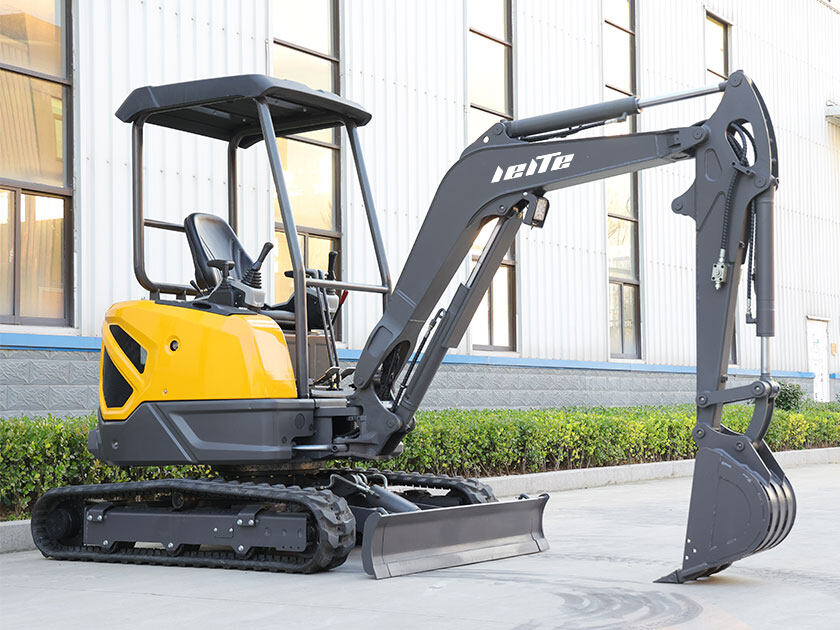

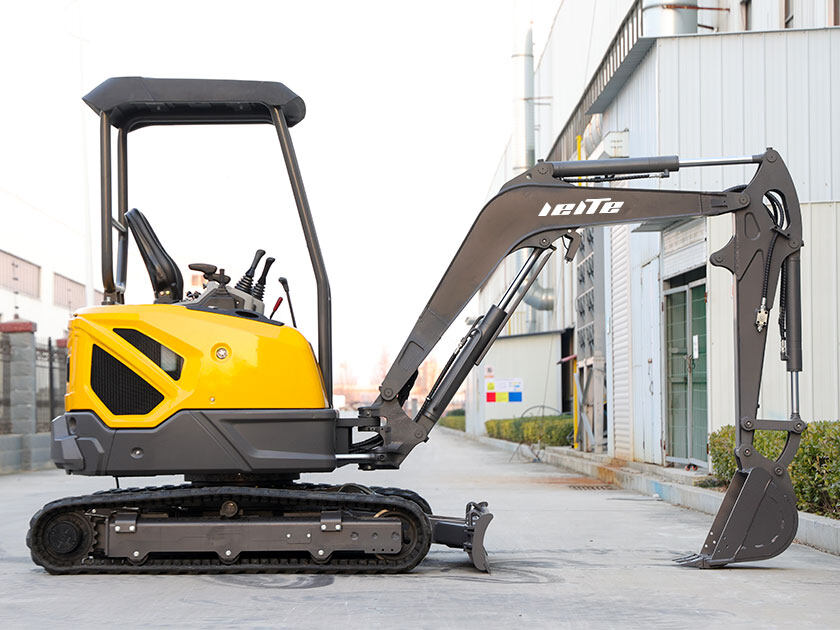

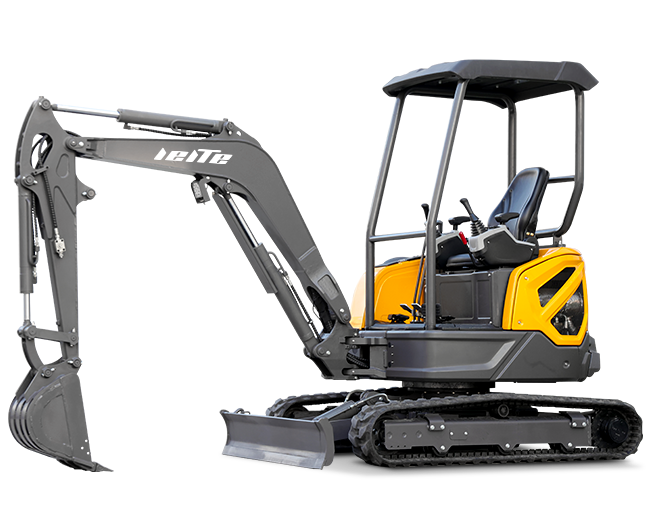

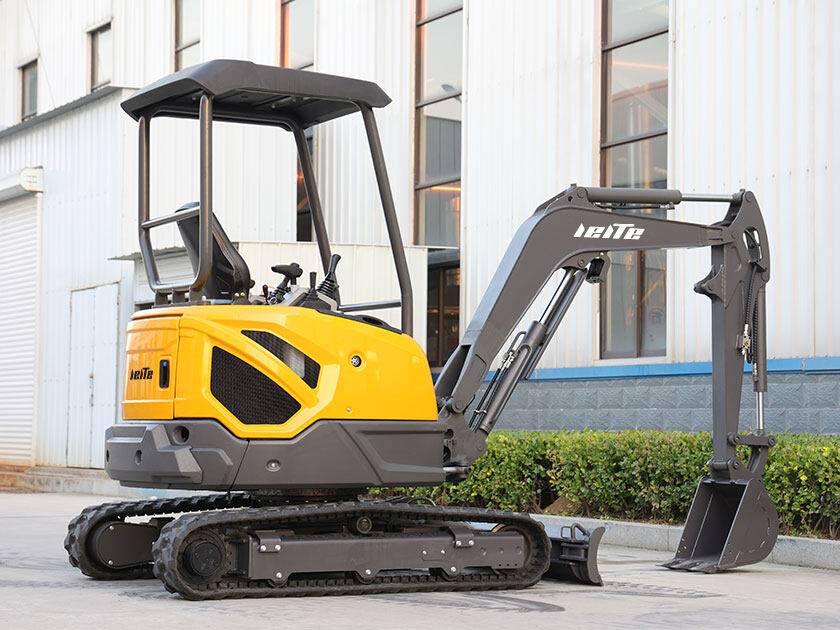

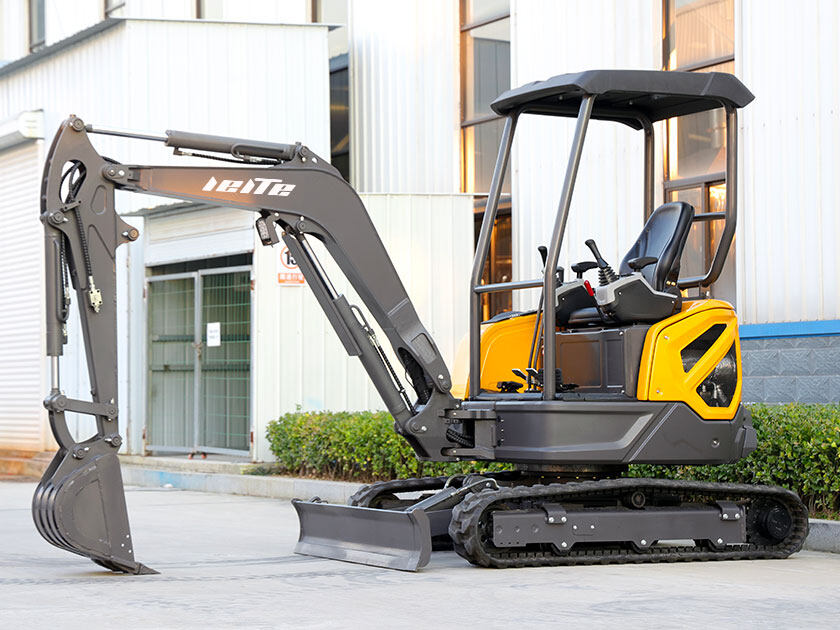

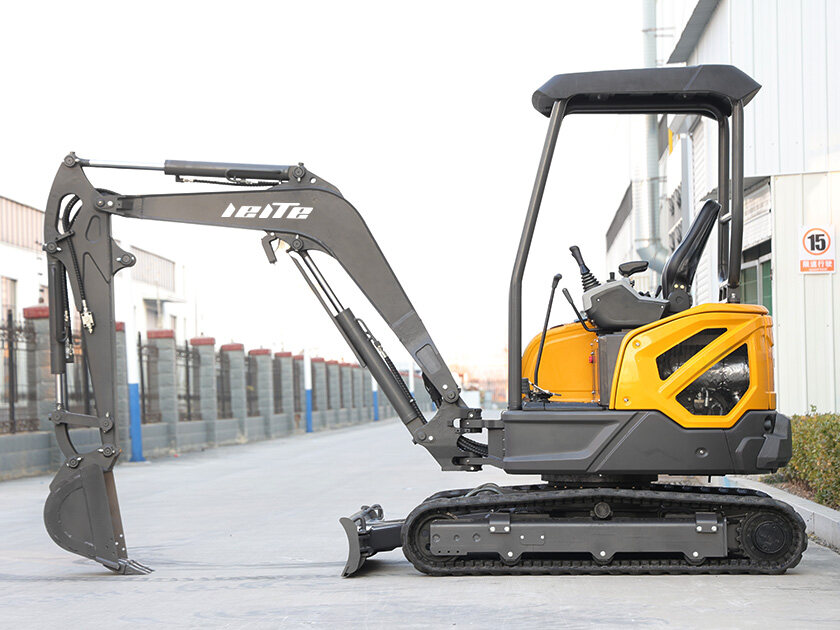

Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1035S is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.

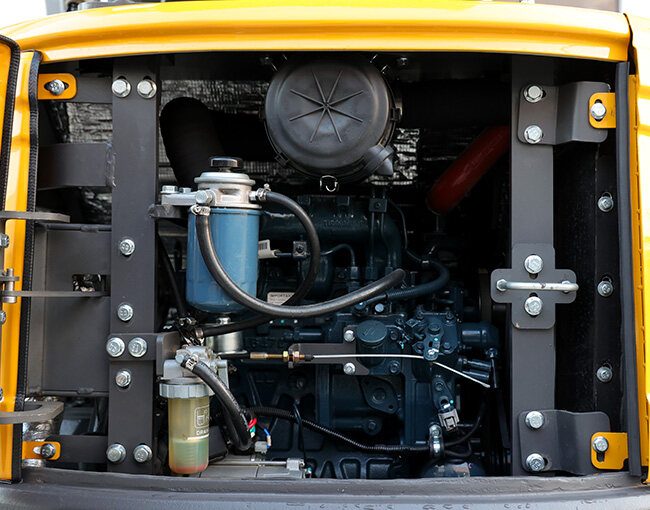

| Engine | Kubota 1703 |
| Net power | 26.1kW |
| Operating weight | 3500 kg |
| Bucket capacity | 0.06m³ |
| Width of platform | 1350 mm |
| Length of crawler | 1900 mm |
| Width of crawler | 250 mm |
| Length*Width*Height | 4130*1500*2550 mm |
| Min.tail swing radius | 930 mm |
| Track gauge | 1560 mm |
| Counterweight clearance | 490 mm |
| Track height | 400 mm |
| Max.digging radius | 4620 mm |
| Max.digging height | 4260 mm |
| Max.unloading height | 3000 mm |
| Max.digging depth | 2600 mm |
| Max.digging radius | 4620 mm |
| Max.vertical digging depth | 2150 mm |
| Min.ground clearance | 150 mm |
