- Operating weight4000kg
- Maximum dig depth3071mm
- Net power18.5kW
- Bucket capacity0.11m³

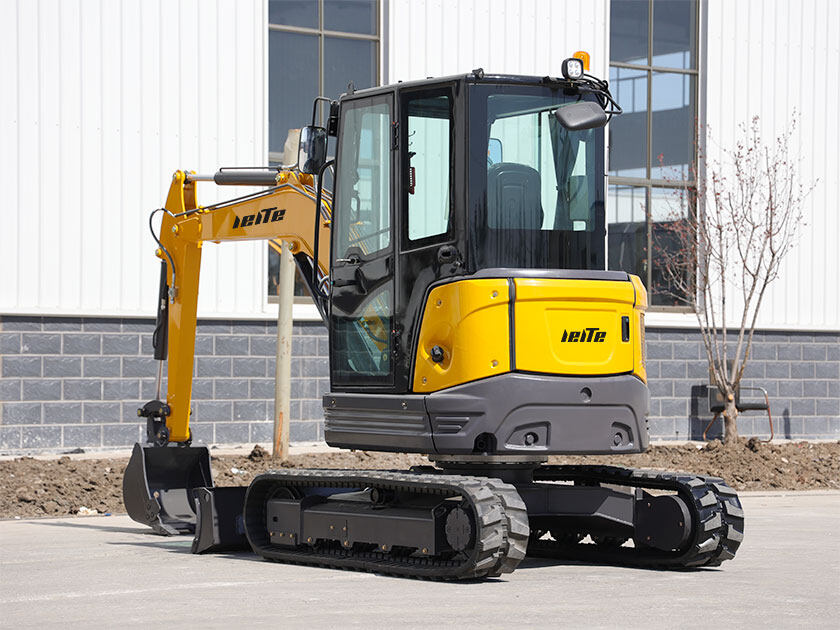

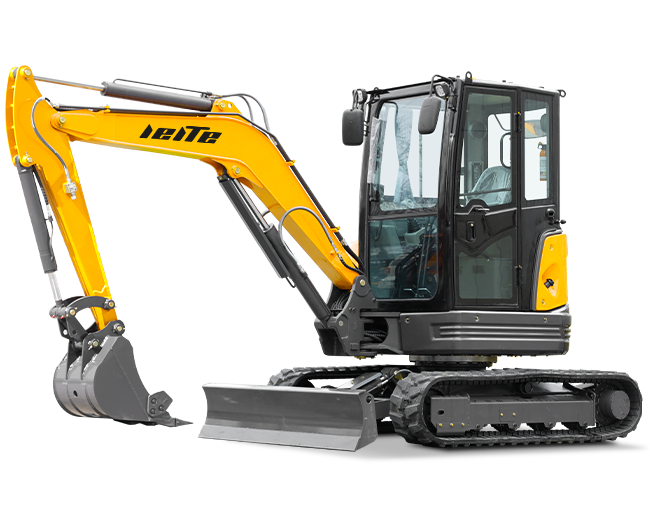

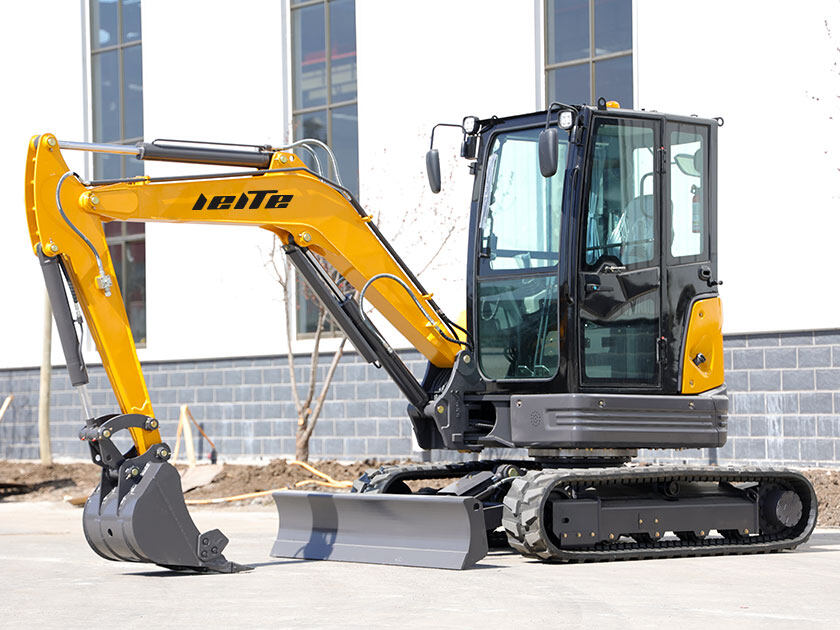

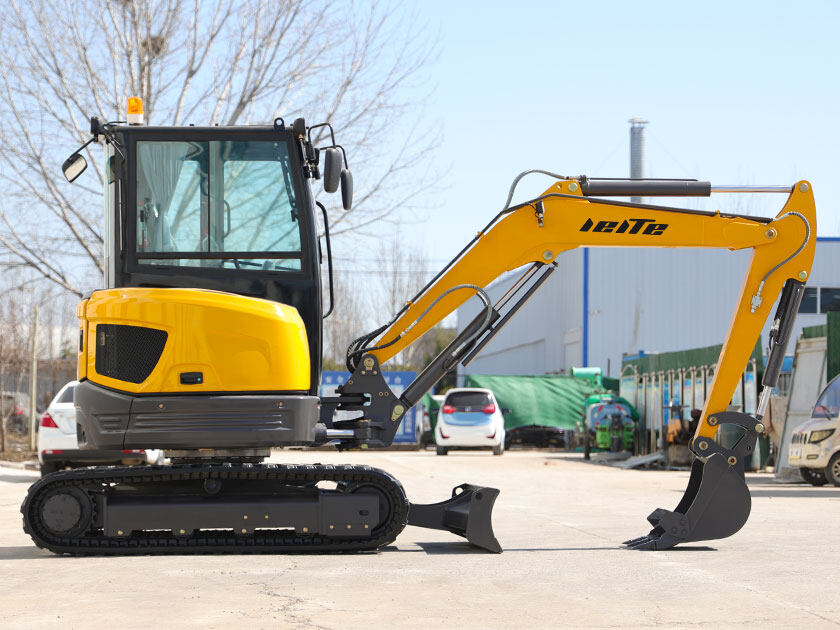

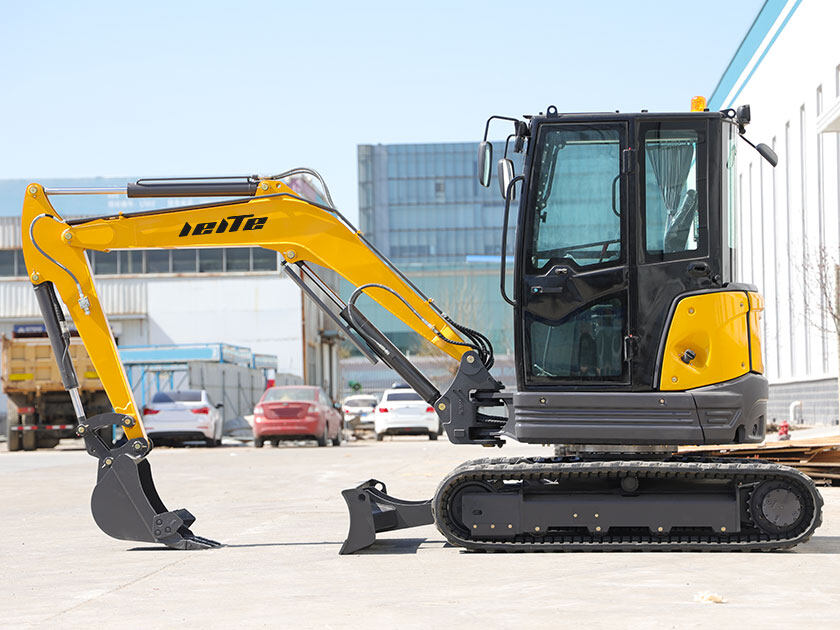

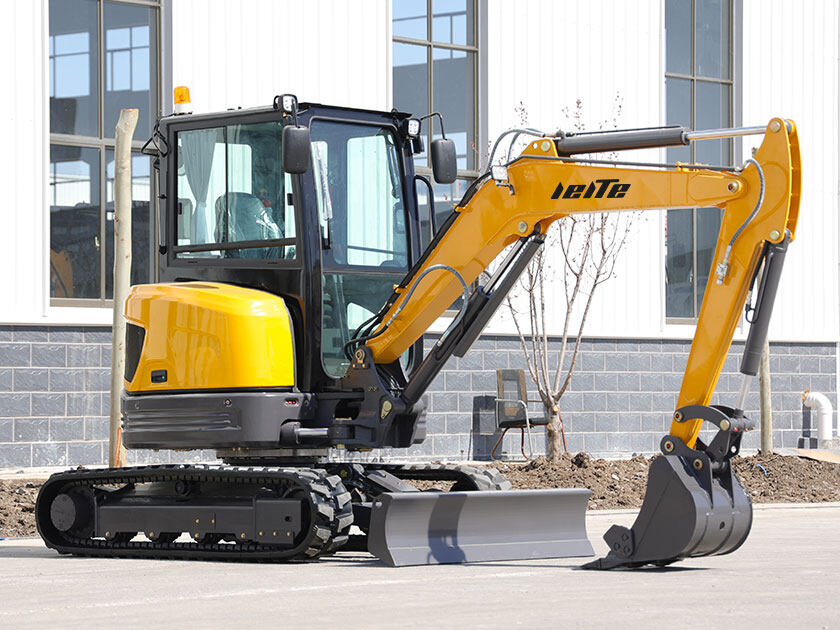

Leite Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1035U is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.
| Engine | Kubota 1703 |
| Net power | 18.5kw/2200rpm |
| Operating weight | 3500 kg |
| Bucket capacity | 0.11m³ |
| Total length | 4945 mm |
| Full width | 1700 mm |
| Full height | 2585 mm |
| Track width | 300 mm |
| Length*Width*Height | 4945*1700*2585 mm |
| Rotation speed | 12 rpm |
| Hydraulic oil tank capacity | 41L |
| Whole machine pressure | 22 Mpa |
| Fuel tank capacity | 40L |
| Max.digging height | 4816 mm |
| Max.dumping height | 3382 mm |
| Max.digging depth | 3071 mm |
| Min.ground clearance | 270 mm |
| Wheel spacing | 1750 mm |
| Ground clearance of counterweight | 595 mm |
