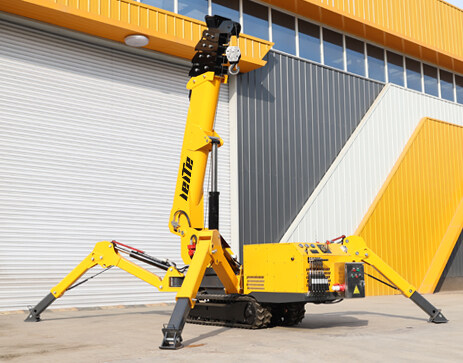

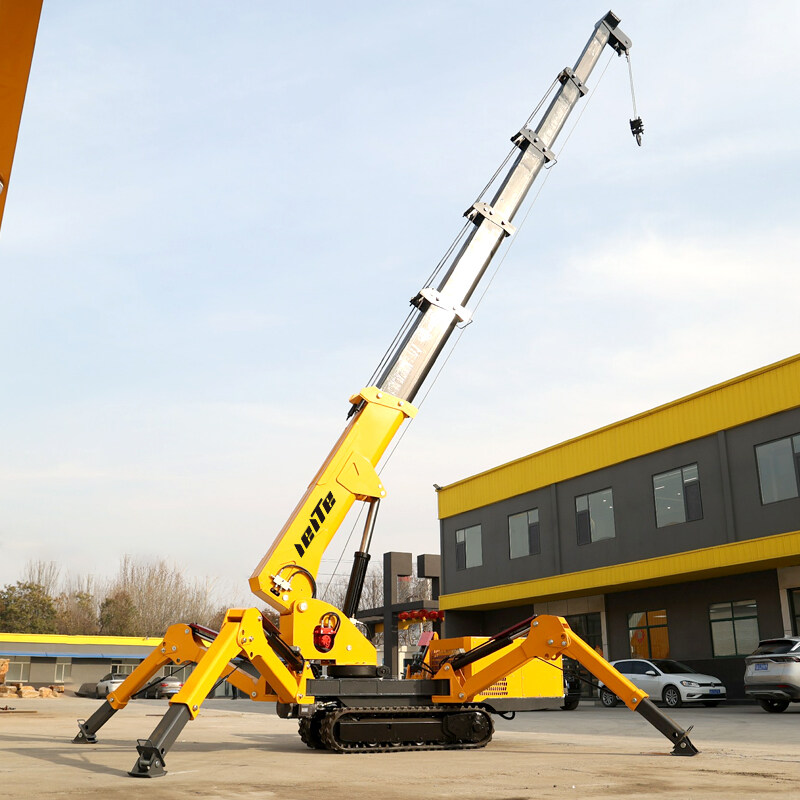

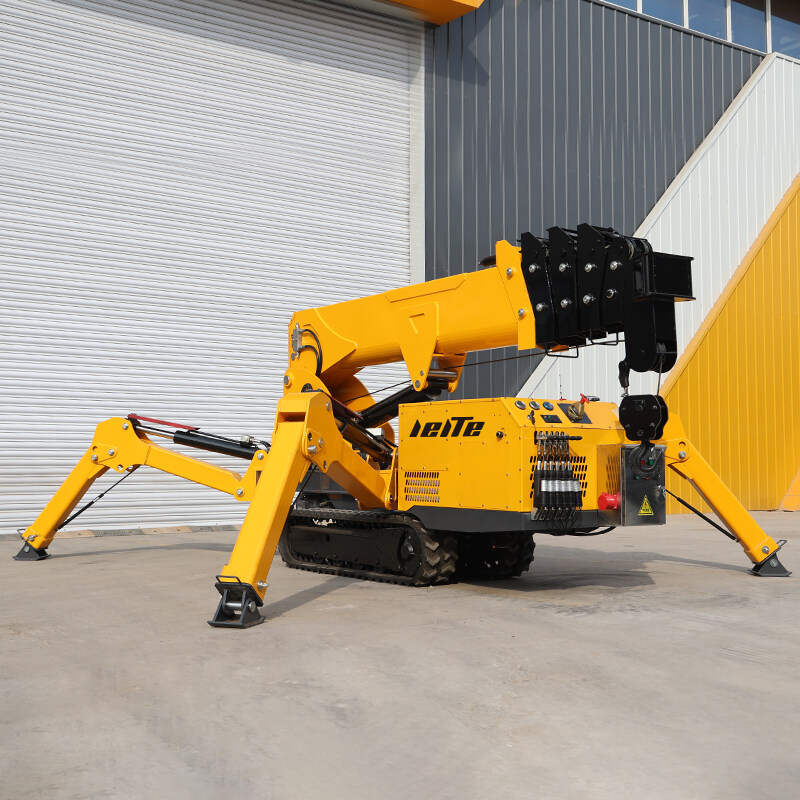

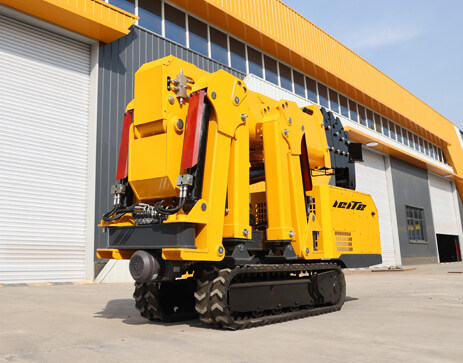

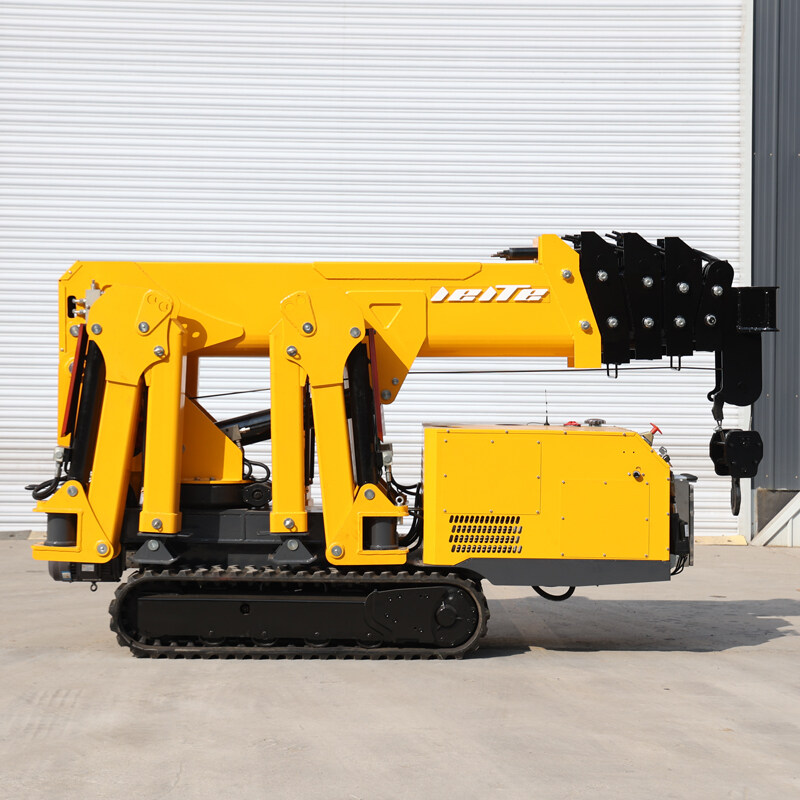

LTZ30Spider Crane
LTZ30Spider Crane
HIGH WORK EFFICIENCY
POWERFUL PERFORMANCE

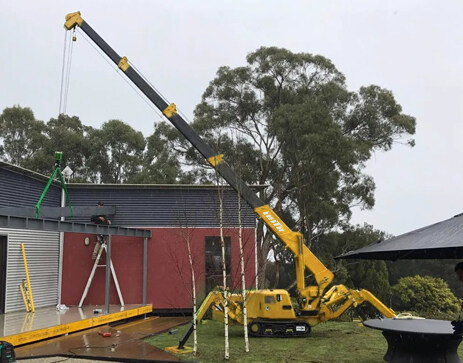

Mini crawler crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Get a quote
View Video
1
2
3
4
5
  • Specifications:3Ton
  • Overall Size3000*800*1900mm
  • OptionaEPA/Euro 5 Standard
Overview LTZ30 Spider Crane

Benefits
  • Brand/color/engine/other customized services, etc.
  • Brand/color/engine/other customized services, etc.

    We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to brand customization, color customization and engine customization.

    Special offers
Specifications
Specifications 3 Ton
Maximum elevation on the ground 9.2mX0.7t
Maximum working radius 8.83mx0.2t
Lift hook up speed 0-8m / min (4 ropes)
Steel wire rope specifications Φ8mmx45m
Hanging arm form 6-section lifting arm, -shaped structure
Hanging arm length / time 3.1m-9.2m/20sec
Arm angle / time 0-78°/13sec
Swing angle / speed 0-360°(continuous)/ 60 sec
The form of leg action Manual rotation+oil pressure automatic support (two legs)
Maximum extension amplitude (mm) 4530(Long)X4370(Rear)X3700(Front)
Walking way Hydraulic motor drive, two-speed
Speed of travel 0-2.5km/h
Climbing capacity 25%(36%)
Voltage AC380V
Engine brand CHANGCHAI
Engine mode EV80
Start performance -5°C~40°
Fuel / volume Diesel / 8L
Battery capacity 12V 45AH
Specific fuel consumption 274g/KW-h
Operation type(boom / leg), manual walking Manual operation, manual walking (optional remote control)
Operational characteristic Manual operation (optional remote control)
Standard layout Diesel engine and electric motor (Dual-power power)
Long, wide, high 3000*800*1900mm(L*W*H)
Conduct oneself with dignity 2700kg
Track 230*72*50
Optiona EPA/EURO 5 STANDARD
