- Bucket capacity0.2m³
- Power58kW
- Weight4800kg
- Dimension5800*1850*2750mm

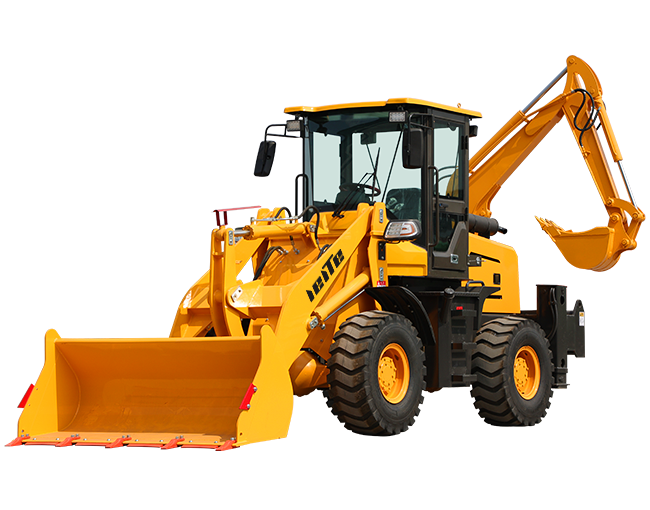

The two-end loader is equipped with working devices at both ends, which can load and unload at both ends at the same time, reducing the number of round trips and greatly improving work efficiency. For example, at the construction site, it can load materials while unloading them to the designated location, saving a lot of time.
| System pressure | 16MPa |
| Machine weight | 4800kg |
| Maximum speed | 26km/h |
| Maximum gradeability | 25° |
| Engine model | Yunnei YN27GBZ |
| Engine type | Turbocharged,four-cylinder four-stroke |
| Rated power | 58kW |
| Rated speed | 2400r/min |
| Maximum excavation depth | 2700mm |
| Excavation unloading height | 2200mm |
| Maximum excavation radius | 4600mm |
| Bucket width | 600mm |
| Bucket capacity | 0.2m³ |
| Maximum excavation height | 4200mm |
| Maximum excavation force | 28KN |
| Maximum unloading height | 3300mm |
| Maximum unloading distance | 850mm |
| Bucket width | 1900mm |
| Bucket capacity | 0.7m³ |
| Maximum lifting height of loading | 4200mm |
| Maximum lifting force | 36KN |
| Fuel tank | 40L |
| Hydraulic oil tank | 40L |
