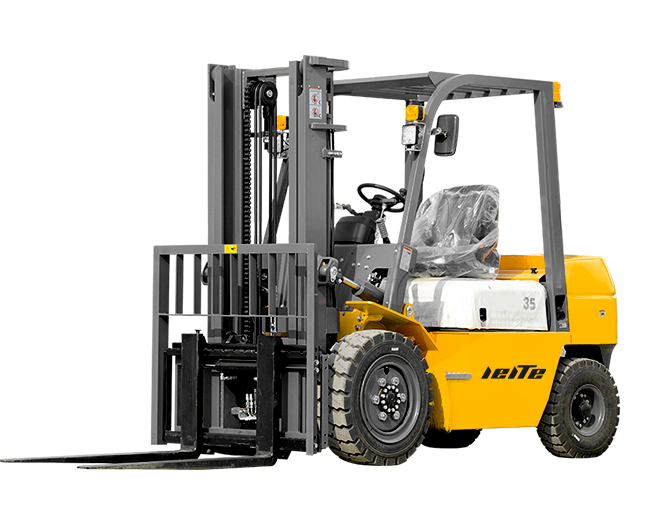

LTP35diesel forklift
LTP35diesel forklift
POWERFUL POWER
HIGH COST PERFORMANCE
Diesel forklifts have high power, strong climbing ability, low requirements on road surface, and long working duration. They are suitable for heavy loads, long working hours, and open outdoor working environments. They have better acceleration performance under heavy loads and are more suitable for short-distance, low-speed, heavy-load, and high-low speed handling operations.
Get a quote
View Video

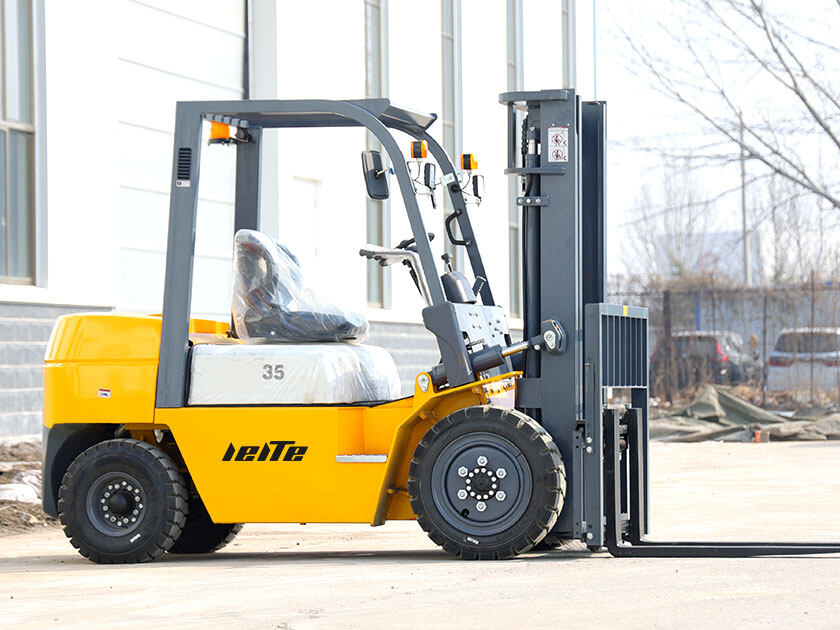

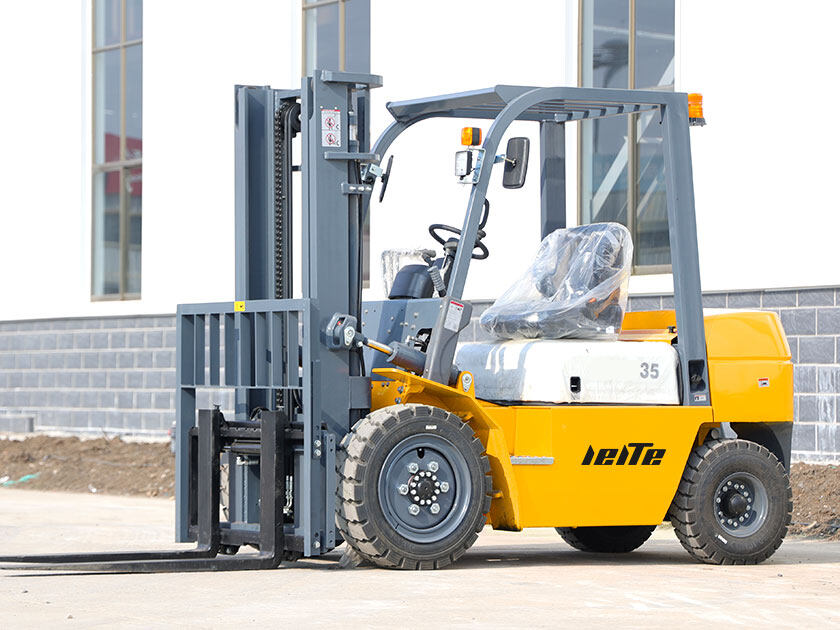

1.LTP35-Diesel-Forklift

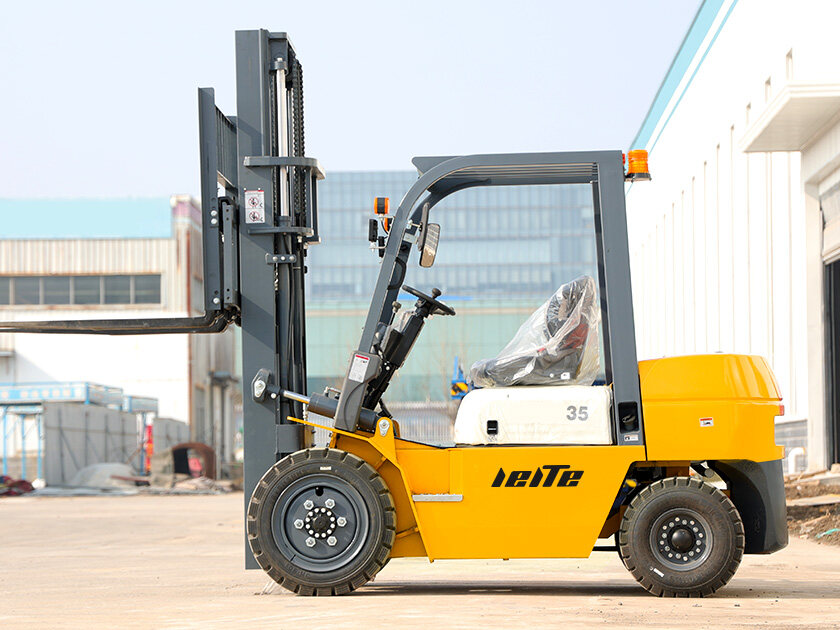

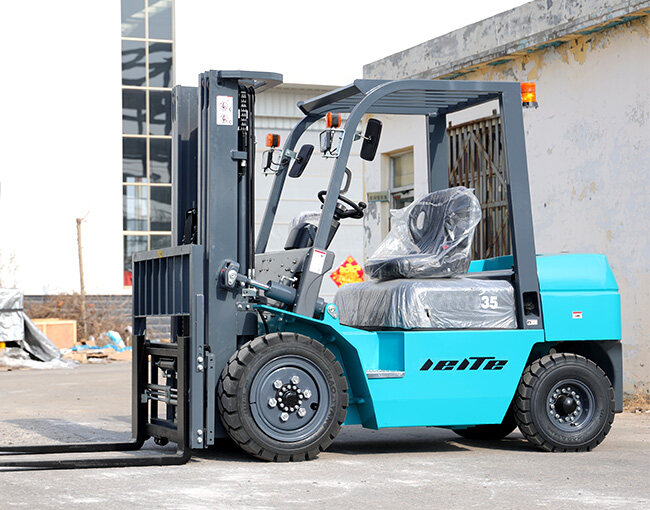

2.LTP35-Diesel-Forklift

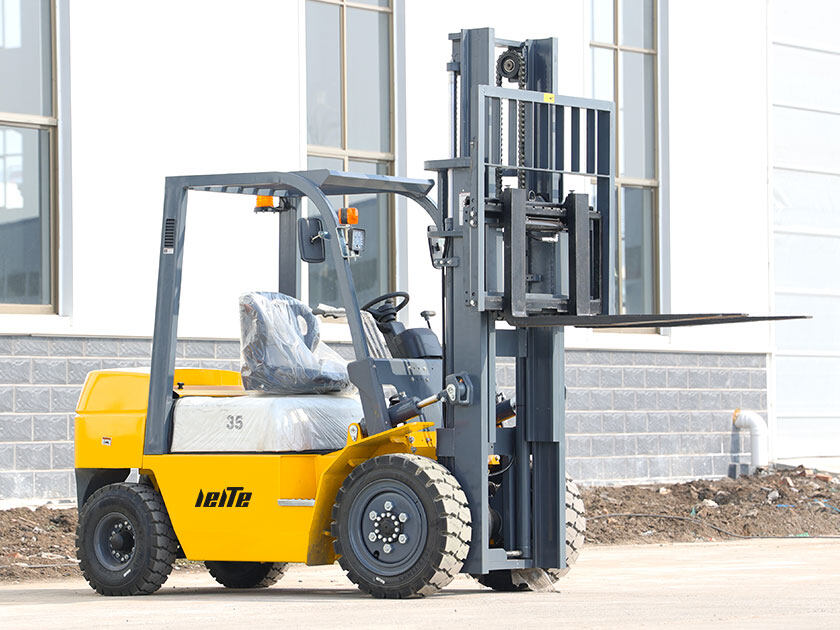

3.LTP35-Diesel-Forklift

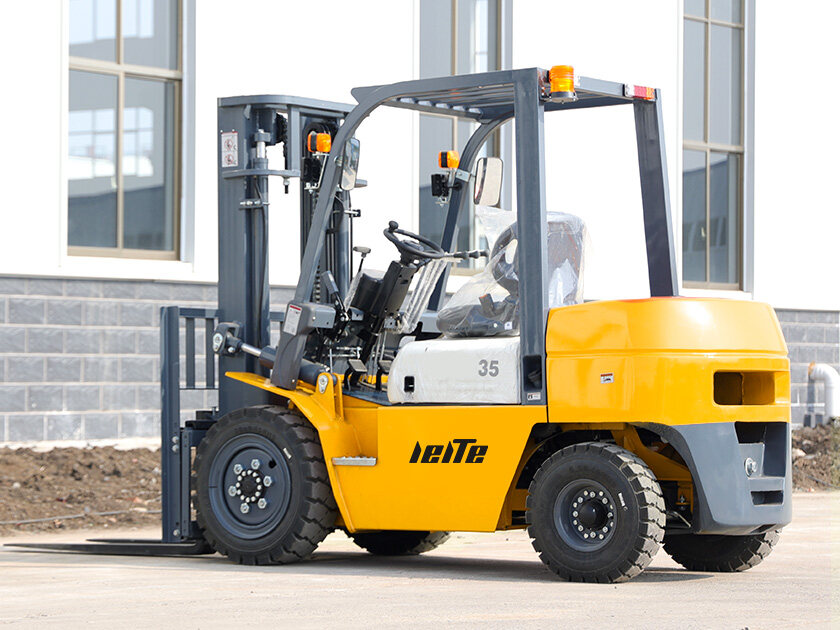

4.LTP35-Diesel-Forklift
5.LTP35-Diesel-Forklift
  • Rated Lifting Load4000kg
  • Lifting Height3-8m/customized
  • EngineXinchai/Quanchai
  • Net Power40/2500kW/rpm
Overview LTP35 diesel forklift

Benefits
  • High cost performance
  • High cost performance

    As an important material handling equipment, Leite diesel forklift has cheap fuel, high power, strong climbing ability, low requirements on road surface, long operation duration, good maintenance performance, and is suitable for heavy loads, long working hours and open outdoor working environments.

    Special offers
Specifications
Rated Load 3500kg
Load Center Distance 500mm
Free Lifting Height 160mm
Full Length (fork/without fork) 3763/2693mm
Ful Width 1225mm
Full Height (overhead guard) 2090mm
Wheelbase 1700mm
Min.Ground Clearance (at the door frame) 135mm
Mast Tilt Angle(Front/Rear) 6°/12

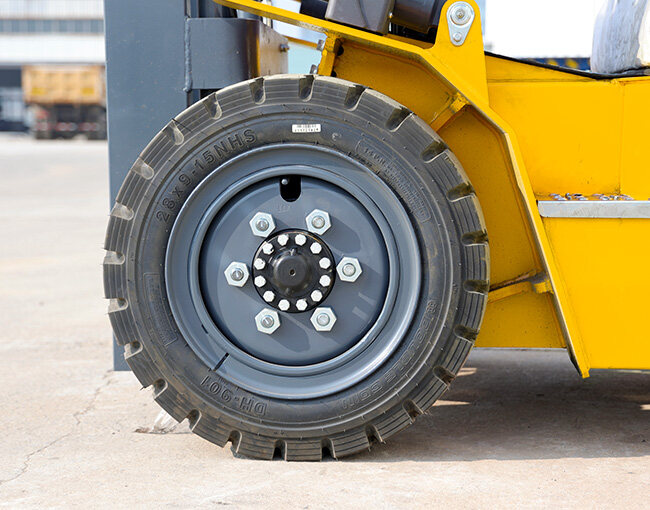

Tire No. (Before) 28*9-15-14PR
Tire No. (After) 6.5-10-10PR
Min.Turning Radius (outer side) 2420mm
Min.Right Angle Channel Width 4260mm
Fork size L*W*T 1070*125*50mm
Max.Travel Speed (laden/unladen) 19/19km/h
Max.Lifting Speed (full load/no load) 330/370mm/s
Max.Gradeability Machinery (full load/no load) 15/20%
Gross Weight 4500kg

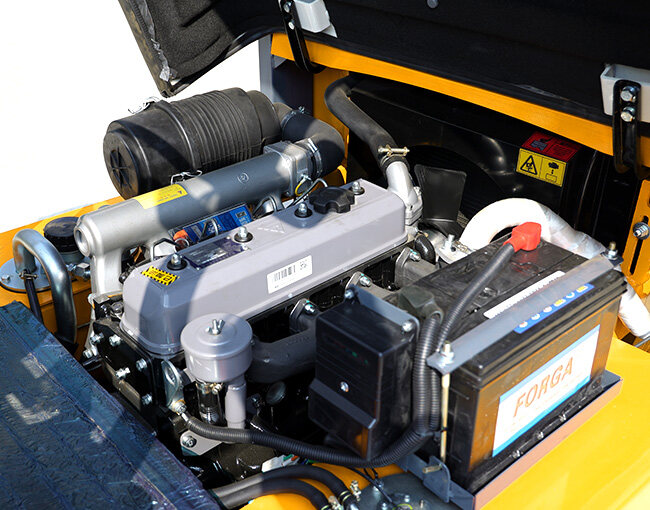

Engine Brand XINCHAI / QUANCHAI
Engine Model 490
Power 40/2500KW/rpm
Torque 157/1800
