- Operating weight8000kg
- Maximum dig depth4038mm
- Net power54.3kW
- Bucket capacity0.32m³

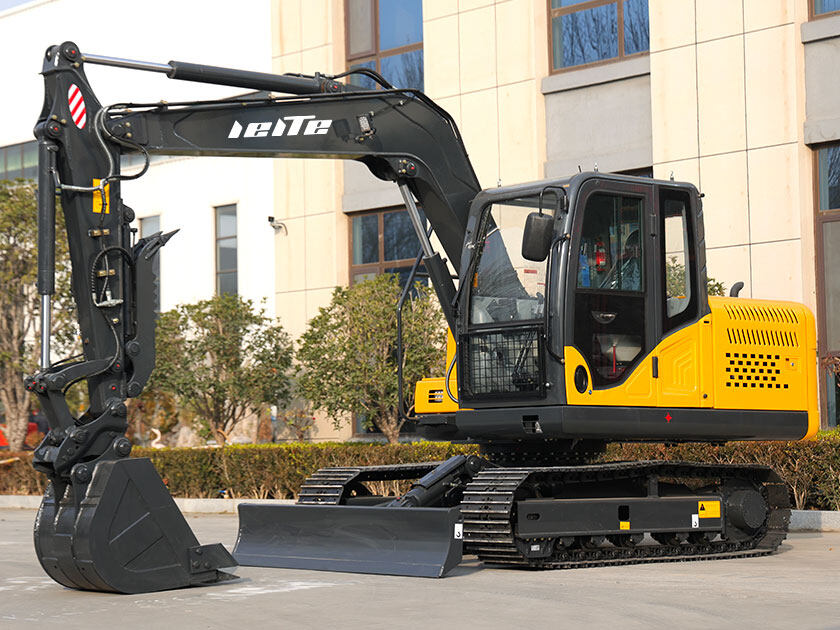

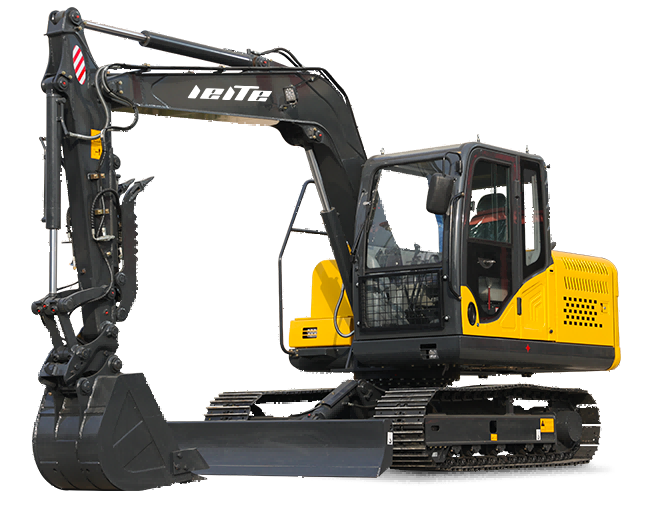

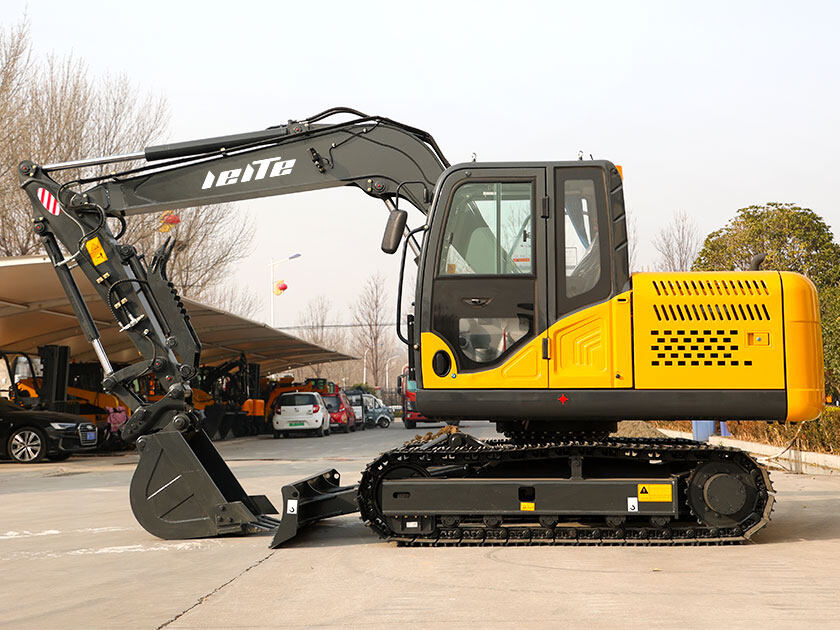

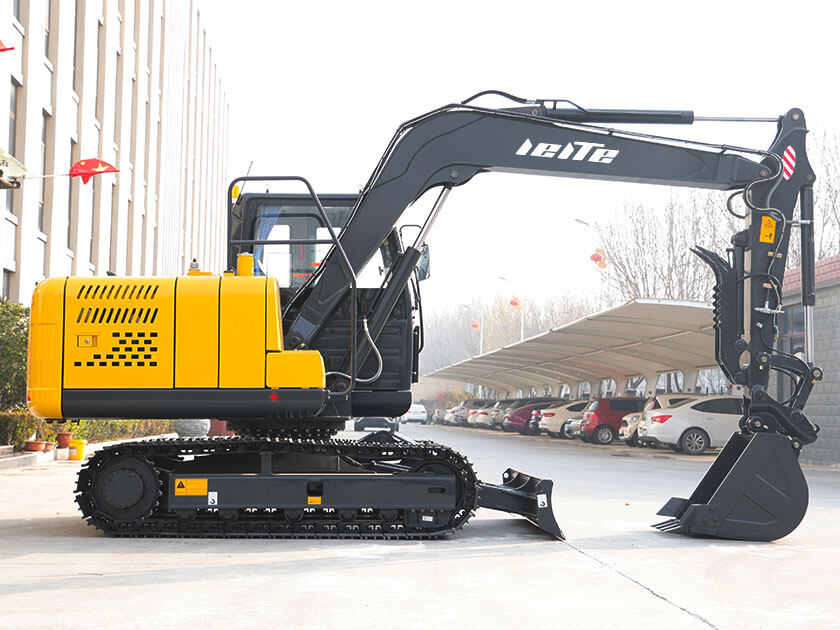

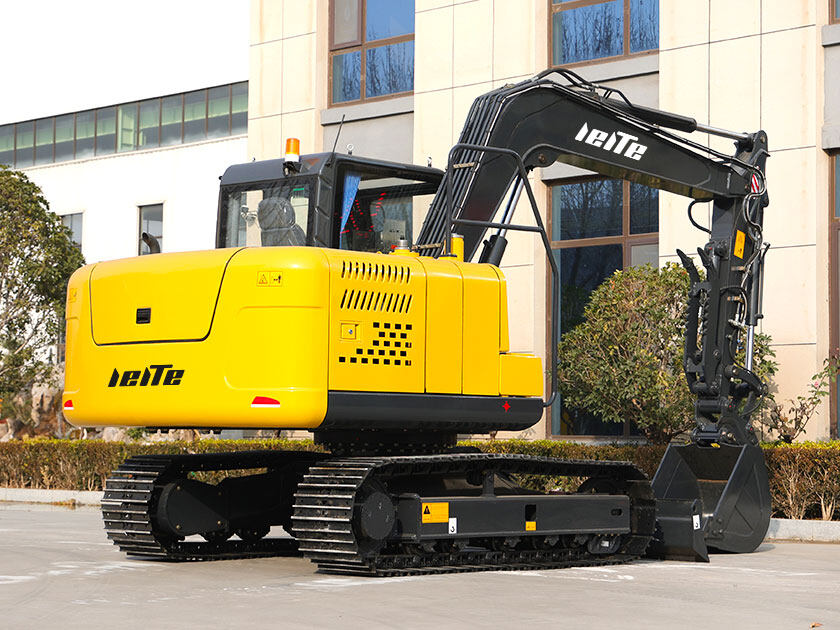

Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1080 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.And a variety of auxiliary tools can be selected to achieve multiple uses of one machine.

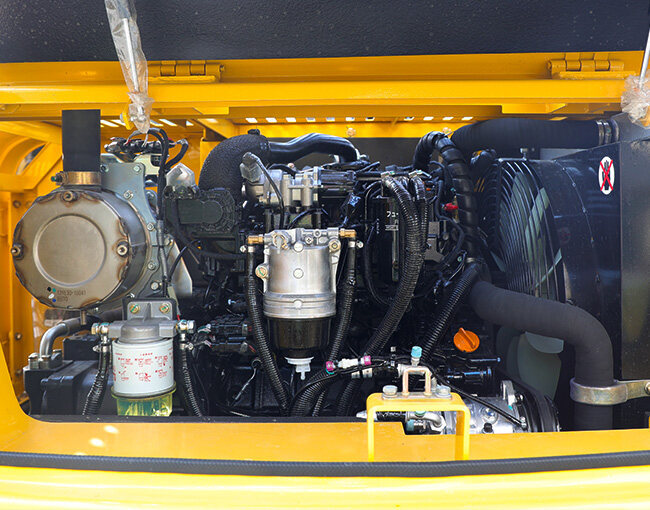

| Model | Yanmar 4TNV98 |
| Power | 54.3kW |
| Operating weight | 8000 kg |
| Bucket capacity | 0.32m³ |

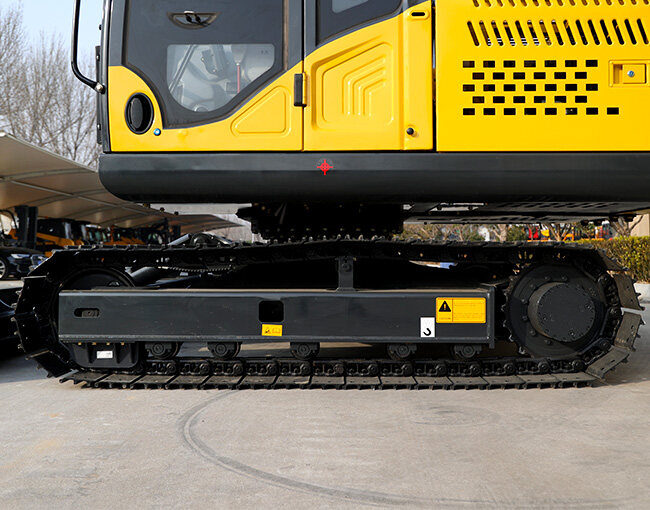

| Track length | 760 mm |
| Track width | 450 mm |
| Travel motor | Eddle |
| Rotary motor | Inline |
| Multiple directional control valve | Inline main valve |
| Hydraulic pump | Inline main pump |
| Length*Width*Height | 6100*2300*2680 mm |
| Cylinders | 4 |
| Bucket width | 800 mm |
| Max.digging height | 7165 mm |
| Max.dumping height | 5065 mm |
| Max.digging depth | 4038 mm |
| Max.swing radius | 1795 mm |
