- Operating weight2000kg
- Maximum dig depth2273mm
- Net power11.8kW / 18.1kW
- Bucket capacity0.04m³






Mini excavators are precision engineered using components and systems from leading and proven sources. The LT1020 is designed to be rugged and reliable to extend uptime, reduce operating costs and increase productivity.

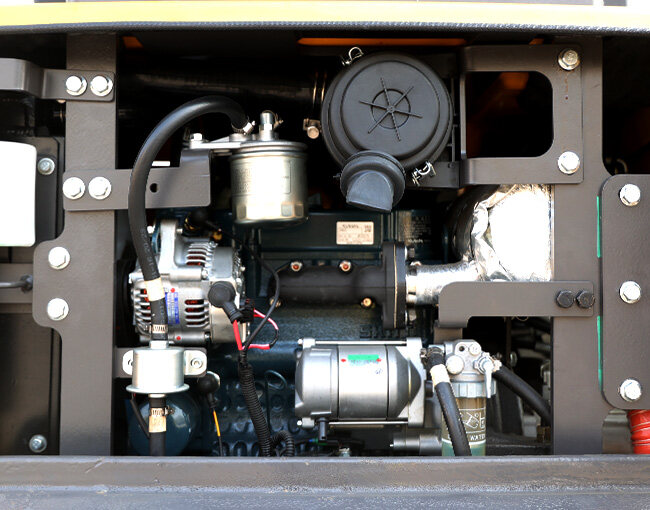

| Model | Kubota D902/KM385 |
| Power | 11.8kw/18.1kw |
| Operating weight | 2000 kg |
| Bucket capacity | 0.04m³ |
| Max.travel speed | 2.4km/h |
| Max.climbing ability | 30° |
| Hydraulic tank capacity | 19L |
| Working pressure | 16 MPa |
| Length*Width*Height | 3468*1250*2459 mm |
| Standard bucket width(with/without side teeth) | 434/295 mm |
| Min.turning radius at front end | 1394 mm |
| Max.bulldozing height | 218 mm |
| Max.bulldozing depth | 157 mm |
| Max.excavation height | 3500 mm |
| Max.unloading height | 2459 mm |
| Max.excavation depth | 2273 mm |
| Max. excavation distance | 3791 mm |
| Max.vertical digging depth | 1900 mm |
| Max.digging ground distance | 3733 mm |
