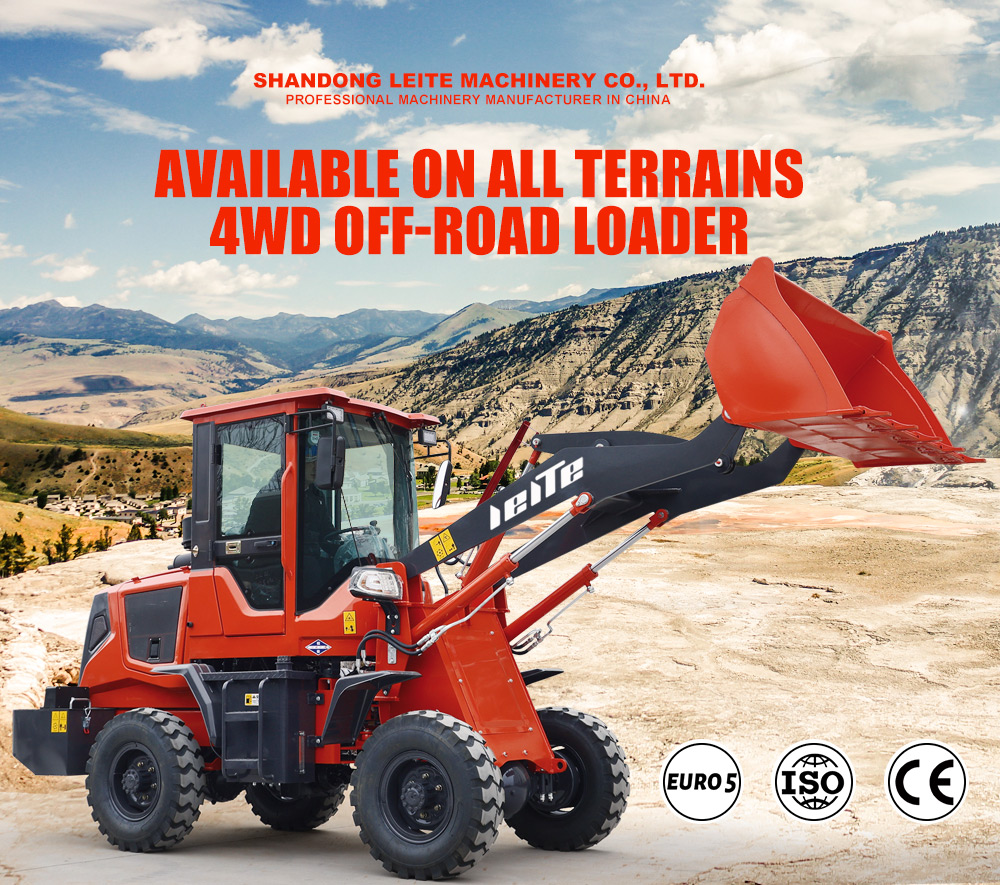

LTZ-926 Wheel loader
4WD off-road all-terrainThe multi-functional wheeled off-road loader can be matched with a variety of attachments and used in multiple scenarios to improve work efficiency.
Operating weight
2,700kg
Bucket capacity
0.5m3
Rated power
36.8 kw
| SUPPORT VARIOUSCUSTOMIZATIONSBrand/color/engine/other customized services, etc.We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to brand customization, color customization and engine customization. |
USER FRIENDLY OPERATIONEnclosed cab,comfortable New steel structure cab, wide field of vision, large operating space, full coverage of cab interior, good sealing, standard air conditioning, comfortable driving environment |
|
| EASE OF USE ANDSERVICEABILITYRear bonnet can be opened The back cover is designed with a small arc to follow the shape, which complements the after-casting counterweight. It has double-sided vents, symmetrical design, and can be opened and closed at any time.Daily service checks are quick and easy to carry out. |
About accessories
-
Bucket
-
Bulldozer
-
Claw-bucket
-
Fork
Parameters of LTZ-926 Wheel loader
LTZ-926 Wheel Loader | |
Machine operating weight | 2700 kg |
Bucket capacity | 0.5 m³ |
Load weight | 1000 kg |
Main traction force | 30 KN |
Maximum digging force | 41 KN |
Maximum tilt angle | 30° |
Maximum unloading height | 3000 mm |
Maximum dumping distance | 700 mm |
Dimensions (mm) | 4700*1760*2650 |
Battery capacity | 60A*2 |
Air conditioner | Optional |
Automatic shift | Standard configuration |
Engine model | A498BT1 |
Fuel type | Diesel fuel |
Bore | 90 mm |
Maximum torque | 196N.M |
Rated power | 36.8 kw |
Rotating speed | 2400 r/min |
Fuel consumption | 4.8 L/H |
Gearbox | Power shift |
Gear | First 4 after 4 |
Hydraulic Torque Interface | Inside 9 Outside 12 |
Top speed | 30 km/h |
Tire model | 1490-16 |
Steering angle | 35° |
Minimum turning radius | 4500 mm |
Work system pressure | 16 Mpa |
Operating system | Mechanical |
Lifting speed | 5 S |
Fuel volume | 70 L |
Hydraulic oil capacity | 70 L |
Transmission oil | 16 L |
Coolant | 12 L |
Brake fluid | 1.6 L |
Differential oil | 1.5+4+1.5 L |
Engine oil | 6.5 L |
