LTZ-958 Wheel loader

Message

Product Details

Request Price

PRODUCTS/Loader/Wheel Loaders / LTZ-958 Wheel loader

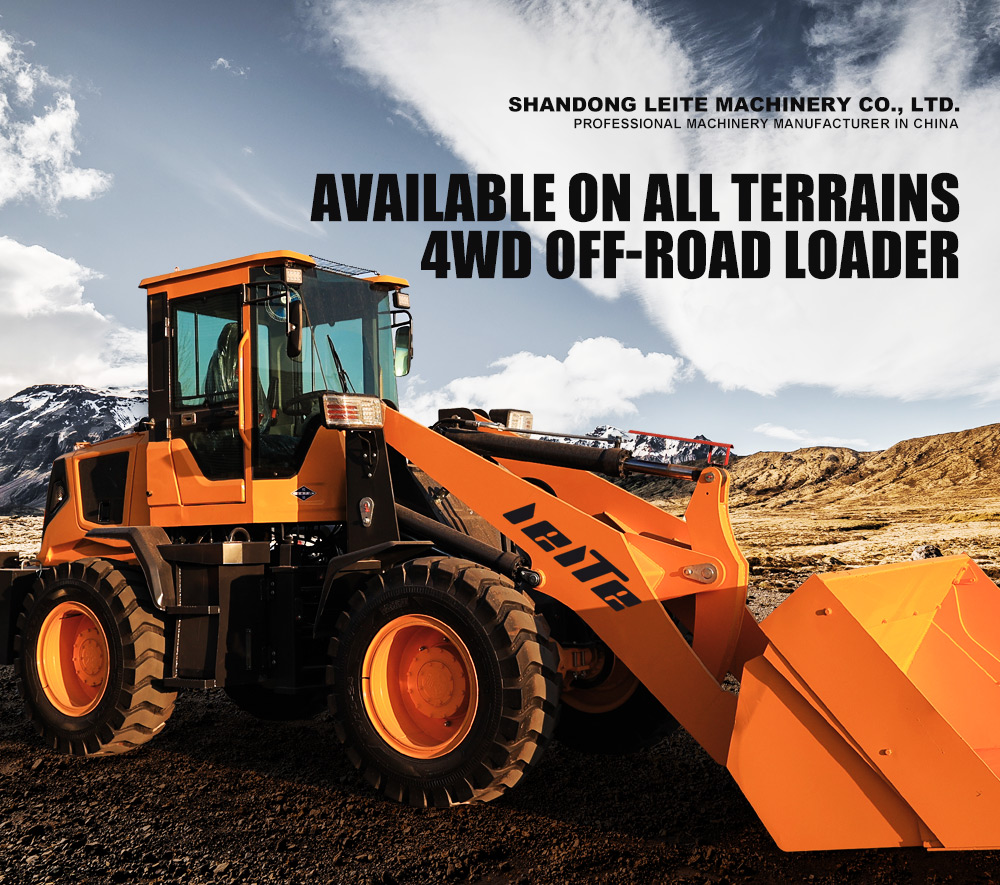

LTZ-958 Wheel loader

4WD off-road all-terrain

The multi-functional wheeled off-road loader can be matched with a variety of attachments and used in multiple scenarios to improve work efficiency.

Operating weight

7,500 kg

Bucket capacity

1.5 m3

Rated power

92 kw

CONTACT US >

4定制服务

SUPPORT VARIOUS

CUSTOMIZATIONS

Brand/color/engine/other customized services, etc.

We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not

limited to brand customization, color customization and engine customization.

USER FRIENDLY OPERATION

Enclosed cab,comfortable

New steel structure cab, wide field of vision, large operating space, full coverage of cab interior, good sealing, standard air conditioning, comfortable

driving environment

5舒适驾驶室

6方便检修

EASE OF USE AND

SERVICEABILITY

Rear bonnet can be opened

The back cover is designed with a small arc to follow

the shape, which complements the after-casting

counterweight. It has double-sided vents, symmetrical design, and can be opened and closed at any time.Daily service checks are quick and easy to carry out.

About accessories

  • Bucket

  • Bulldozer

  • Claw-bucket

  • Fork

MORE

Parameters of LTZ-958 Wheel loader

LTZ-958 Wheel Loader

Machine operating weight

7500 kg

Bucket capacity

1.5 m³

Load weight

2500 kg

Main traction force

93 KN

Maximum digging force

120 KN

Maximum tilt angle

30°

Maximum unloading height

3000 mm

Maximum dumping distance

900 mm

Dimensions (mm)

6890*2430*3070

Battery capacity

100A*2

Air conditioner

Standard configuration

Automatic shift

Standard configuration

Engine model

DEUTZ WP6G125E22

Fuel type

Diesel fuel

Bore

105 mm

Maximum torque

460 N.M

Rated power

92 kw

Rotating speed

2200 r/min

Fuel consumption

9 L/H

Gearbox

Power shift

Gear

First 4 after 4

Hydraulic Torque Interface

Inside 8 Outside 12

Top speed

40 km/h

Tire model

17.5-25

Steering angle

35°

Minimum turning radius

5000 mm

Work system pressure

16 Mpa

Operating system

Mechanical

Lifting speed

5.5 S

Fuel volume

120 L

Hydraulic oil capacity

100 L

Transmission oil

21.5 L

Coolant

23 L

Brake fluid

2.5 L
