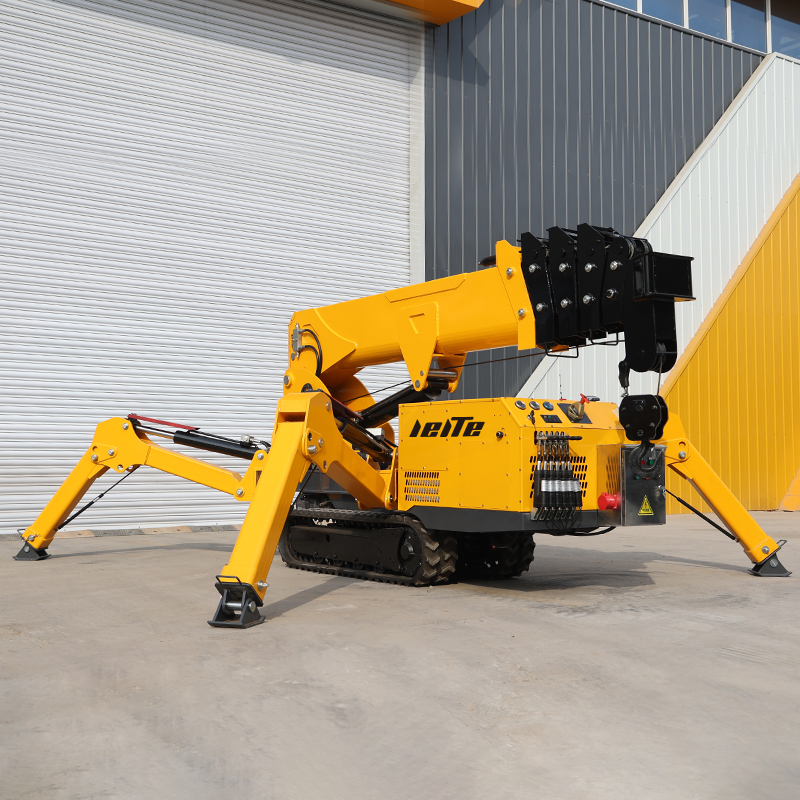

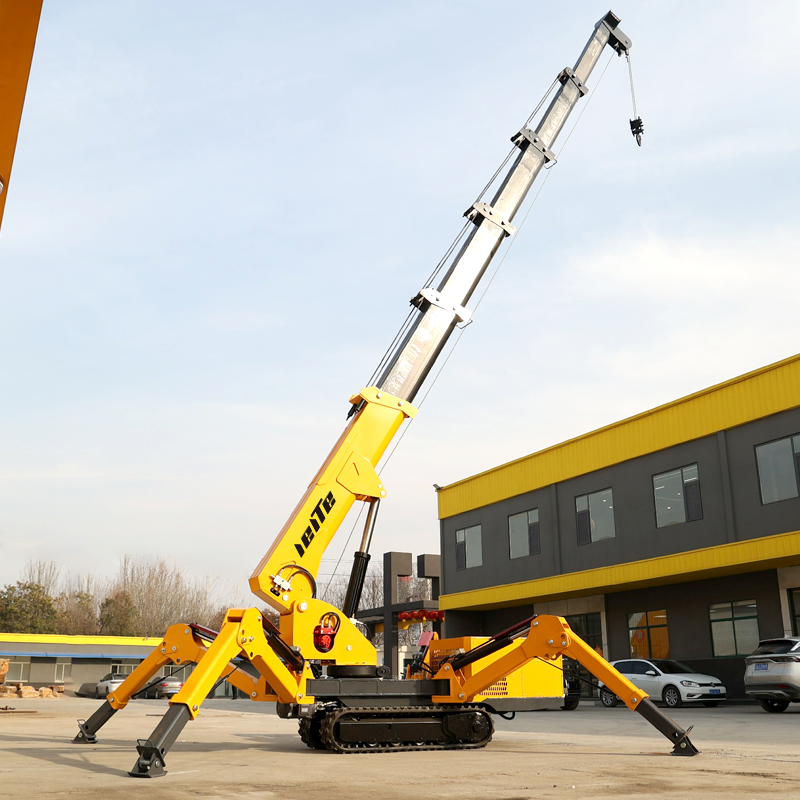

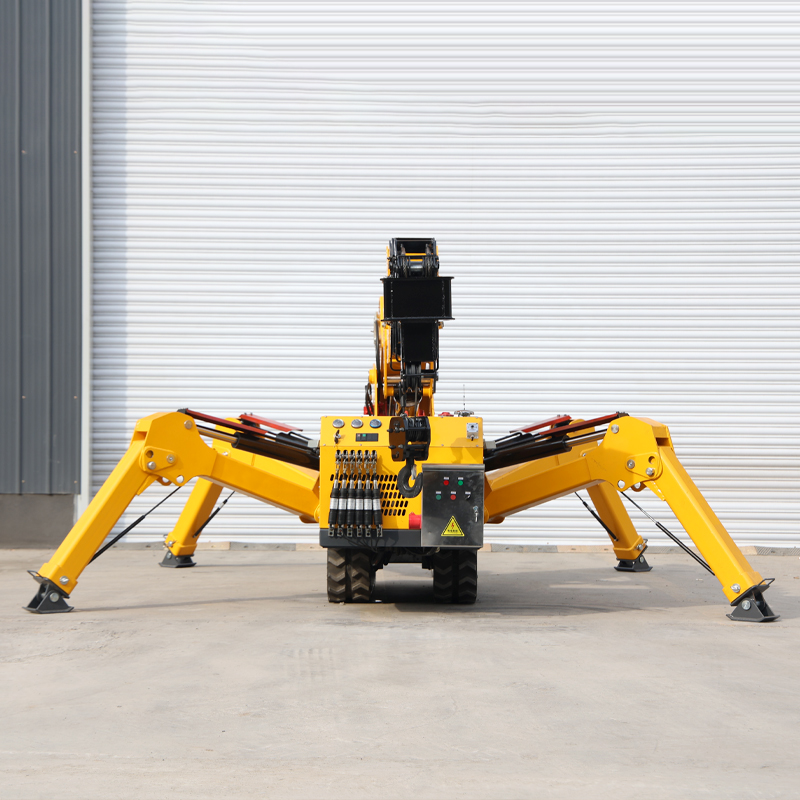

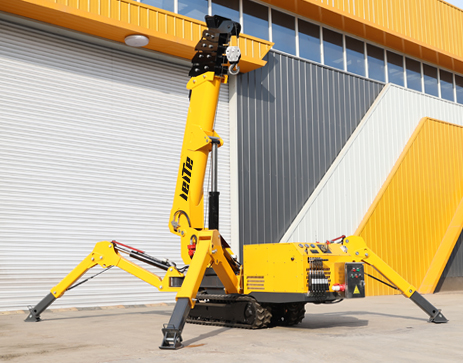

LTZ30 Spider Crane
Easy Access To Tight SpacesLEITE mini crawler crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Specifications
3 Ton
Overall Size
3000*800*1900mm
Optiona
EPA/Euro 5 Standard
|
|
SUPPORT VARIOUSCUSTOMIZATIONSBrand/color/engine/other customized services, etc.
We can provide you with exclusive customization services, and will produce the products you want according to your requirements, including but not limited to brand customization, color customization and engine customization. |
NOT LIMITED BY SPACEEASY ACCESS TO SMALL SPACE

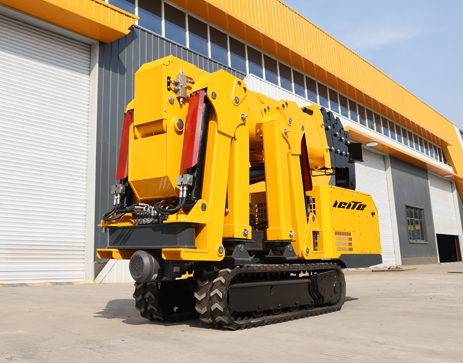

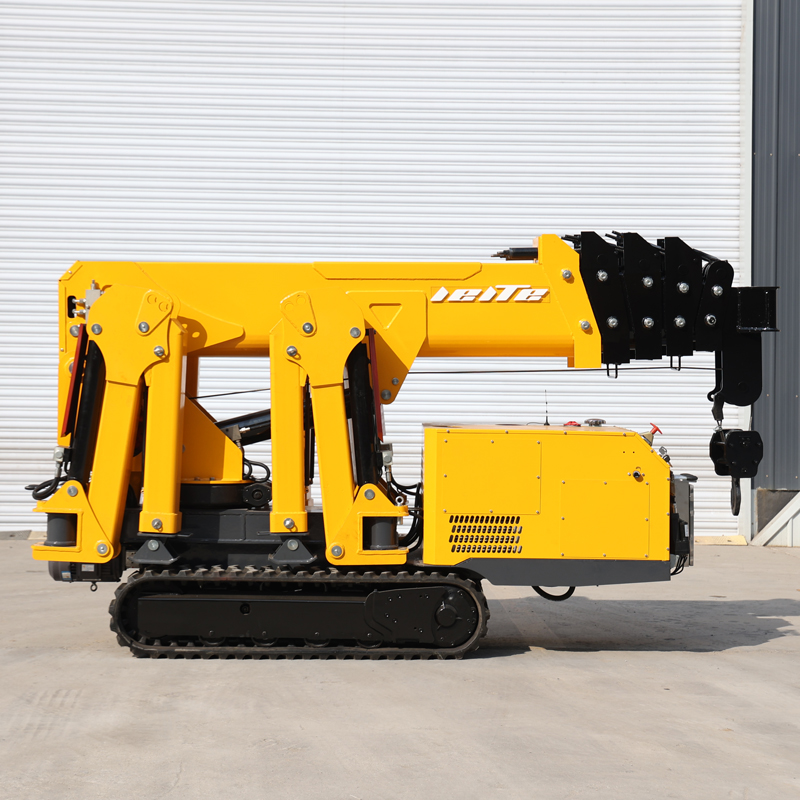

The compact body design of spider crane means that work can be carried out indoorsor in areas with limited space, The compact body of spider crane can easily enter the construction site and reduce the use cost.
|
|
|
|

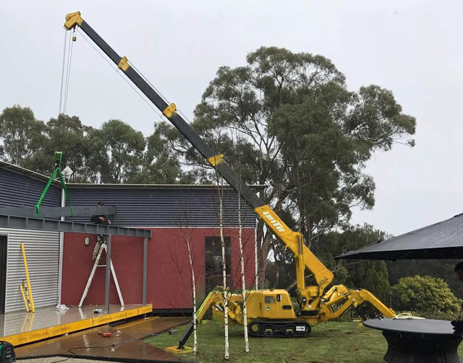

CONSTRUCTION CASEhe conventional lifting weight of spider crane is between 3 tons and 8 tons, which is a new type ofaerial work equipment. The main purpose is to help users complete aerial work. The station mastercan lift the work on the platform manually, so as to ensure the safety of construction personnel.Aerial work is mainly safety, For example, outdoor maintenance and decoration can be completed byspider crane, and it is also possible to help users transport some items. |
About accessories
-
Steel-Track
-
Remote-Controller
-
Jib Boom
-
Hanging-Basket
Parameters
| LTZ30 PRODUCT PARAMETERS | ||
| Specifications | 3 Ton | |
| Maximum elevation on the ground | 9.2mX0.7t | |
| Maximum working radius | 8.83mx0.2t | |
| Roll up device | Lift hook up speed | 0-8m / min (4 ropes) |
| Steel wire rope specifications | Φ8mmx45m | |
| Retractor device | Hanging arm form | 6-section lifting arm, -shaped structure |
| Hanging arm length / time | 3.1m-9.2m/20sec | |
| Up and down device | Arm angle / time | 0-78°/13sec |
| Gyroscope | Swing angle / speed | 0-360°(continuous)/ 60 sec |
| Landing leg | The form of leg action | Manual rotation+oil pressure automatic support (two legs) |
| Maximum extension amplitude (mm) | 4530(Long)X4370(Rear)X3700(Front) | |
| Running gear | Walking way | Hydraulic motor drive, two-speed |
| Speed of travel | 0-2.5km/h | |
| Climbing capacity | 25%（36%) | |
| Any power-generating or power-driven machine | Voltage | AC380V |
| Engine | Engine brand | CHANGCHAI |
| Engine mode | EV80 | |
| Start performance | -5°C~40° | |
| Fuel / volume | Diesel / 8L | |
| Battery capacity | 12V 45AH | |
| Specific fuel consumption | 274g/KW-h | |
| Operating system | Operation type(boom / leg), manual walking | Manual operation, manual walking (optional remote control) |
| Operational characteristic | Manual operation (optional remote control) | |
| Standard layout | Diesel engine and electric motor (Dual-power power) | |
| Long, wide, high | 3000*800*1900mm(L*W*H) | |
| Conduct oneself with dignity | 2700kg | |
| Track | 230*72*50 | |
| Optiona | EPA/EURO 5 STANDARD | |
